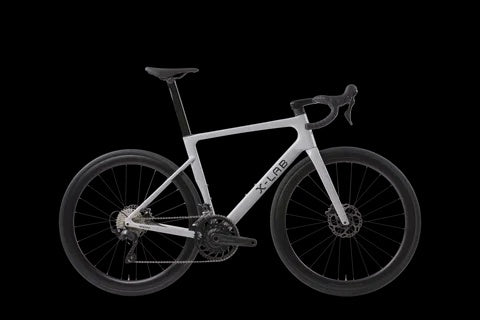

X-LAB RS7

Race-inspired speed, all-road performance, built for the everyday ride.



X-LAB RS7

The RS7 blends aerodynamic efficiency with everyday rideability.

Its performance-oriented geometry and refined carbon construction deliver speed when you push, while maintaining the comfort and stability needed for longer rides.

Equally at home on weekend training routes or daily commutes, the RS7 offers a balanced performance platform that riders return to again and again.



Carbon Confidence, Every Day

The RS7 is the road bike that makes true performance feel approachable for all riders, boasting full carbon responsiveness, drop-bar control, and a geometry that’s ready for everything from country roads to your fastest group ride.



Topography-Inspired Colorways

Inspired by the contours of iconic mountain terrains, RS7’s finishes aren’t just paint; they’re a nod to the roads that shape riders and the climbs that define seasons.



Making Upgrades Simply Standard

With a Branta alloy crankset featuring a built-in power meter and Find My connectivity, RS7 delivers the upgrades riders usually pay extra for, all baked in from day one.



Key Features

Branta C45 Base carbon wheelset

Shimano 105 groupset

Aero carbon seatpost

Full carbon frame and fork | Full bike 8.49 kg



Technical Specifications

FRAME

XDS Carbon Frame, Toray T-700



FORK

XDS Carbon Fork, Toray T-700, 100x12mm Thru-axle



HANDLEBAR / STEM

Branta Carbon Integrated



SEATPOST

XDS Carbon Seatpost, Aero Profile



REAR DERAILLEUR

Shimano 105 RD-R7100



FRONT DERAILLEUR

Shimano 105 FD-R7100



SHIFTERS

Shimano 105 ST-R7120



BRAKES

Shimano 105 BR-R7170



CASSETTE

CS-R9012, 12-Speed, 11-34T



CRANKSET

Branta Alloy Power Meter Crankset, 52-36T,

24mm Steel Spindle, Apply Find My Anti-Theft Technology



BOTTOM BRACKET

BSA 24mm



ROTORS

Shimano SM-RT70, F:160mm R:160mm



CHAIN

SUMC SX12



WHEELSET

Branta C45 Base Carbon Wheelset, Stainless Steel Spokes



TIRES

Branta R332, 700x32C, 60TPI



SADDLE

Branta R302, Steel Rails



WEIGHT

8.49 kg / 18.67 lbs (Size L)



SIZE OPTIONS

XS / S / M / L / XL / XXL

Frame	Size	XS	S	M	L	XL	XXL
A	Seat Tube Length (mm)	420	440	470	490	510	530
B	Top Tube Length (mm)	500	515	531	550	570	590
C	Head Tube Length (mm)	130	135	145	160	175	200
D	Seat Tube Angle (deg)	75	75	75	74	74	74
E	Head Tube Angle (deg)	70	72	73	73	73	74
F	Chainstay Length (mm)	410	410	410	410	410	410
G	Wheelbase (mm)	973	976	982	993	1006	1016
H	Fork Rake/Offset (mm)	55	55	45	45	45	45
I	BB Drop (mm)	72	72	70	70	68	68
J	Stack (mm)	526	535	546	561	574	602
K	Reach (mm)	360	370	380	390	400	412
L	Front Center (mm)	574	577	581	593	606	616
O	Stand-over Height (mm)	737	752	772	789	807	830
	Trail (mm)	65	58	62	60	58	52
Components		XS	S	M	L	XL	XXL
	Stem	90	100	110	110	120	120
	Handlebar	360	360	380	380	400	400
	Crankset	165	165	170	170	172.5	172.5
	Seat Post
