Specialized

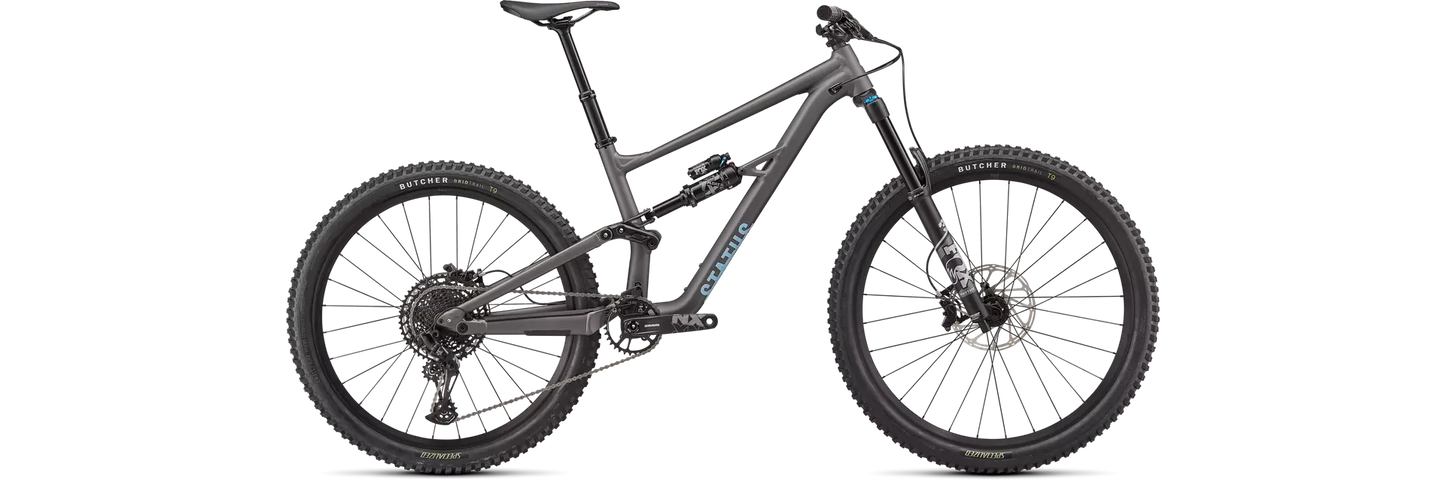

STATUS 160 MY22 SPECIALIZED
STATUS 160 MY22 SPECIALIZED
Regular price
$4,200.00 NZD
Regular price
Sale price
$4,200.00 NZD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The time is 'NOW' Enquire on availability. Prompt service guaranteed
The Status 160 may be an all-new bike, but it’s really an all-new way of thinking about how to have the most fun possible on two wheels—even if that means they’re different sizes.
A 29-inch wheel offers up maximum cornering traction and roll-over capability in front while a 27.5 inch wheel out back brings with it shorter chainstays—and the party. Paired together with our playful Mixed Wheel-Size Trail Geometry the result is capital-F fun. Park-stomping, trail-slashing, getting-jibby-with-it fun.
We rounded out the Status 160’s fun-first frame with everything you need to keep the party going—big brakes, an X-Fusion Manic dropper post and Fox’s FLOAT 36 Rhthym Fork paired with a FLOAT X Performance shock, all brought together by the active, planted feel of our FSR suspension platform.
Test- Focused on fun and featuring our Mixed-Wheel Trail Geometry, the Status frameset is a fewer frills, all thrills FSR delivery system crafted from our hard-charging—and hard-wearing—M5 alloy and is designed not only to take a hit, but keep asking for more.
- Fox’s FLOAT 36 Rhythm calls their venerable Grip damper into service in the name of adventurous riders everywhere, offering impressively controlled travel with plenty of trail-feel that puts confidence on speed dial. The two-position Sweep adjustment ensures the FLOAT 36 Rhythm is right at home dealing out its 160-millimeters of travel in just about any environment while 36-millimeter stanchions promise plenty of stiffness for precise handling at the limit.
- Quality suspension unlocks some serious free speed, so to slow it all down, we tasked SRAM’s proven Code R brakes with stopping duties. Forged four-piston calipers offer serious stopping power, while 200-millimeter rotors on both ends of the bike promise plenty of fade-free bite when it matters.
Specifications
FRAMESET
- Seat Binder
- Alloy, 38.6mm
- Frame
- M5 alloy chassis and rear-end, Mixed wheel Trail Geometry, threaded BB,12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 160mm of travel
SUSPENSION
- Fork
- FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset, 160mm of travel
- Rear Shock
- FOX FLOAT X Performance, Rx Trail Tune, EVOL Air sleeve, 2-position lever w/ LSR adjustment, 230x60mm
COCKPIT
- Stem
- Alloy Trail Stem, 35mm bar bore
- Saddle
- Body Geometry Bridge Comp, hollow Cr-Mo rails, 143mm
- Grips
- Deity, Knuckleduster, Black
- Handlebars
- Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 800mm width
- SeatPost
- X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9mm, S1:125, S2: 150mm, S3/S4/S5: 170mm
BRAKES
- Rear Brake
- SRAM Code R, 4-piston caliper, hydraulic disc, 200mm
- Front Brake
- SRAM Code R, 4-piston caliper, hydraulic disc, 200mm
DRIVETRAIN
- Bottom Bracket
- SRAM DUB, BSA 73mm, Threaded
- Chain
- SRAM NX Eagle, 12-speed
- Rear Derailleur
- SRAM NX Eagle, 12-speed
- Cassette
- SRAM NX Eagle, 12-speed, 11-50t
- Crankset
- SRAM NX Eagle, DUB, 170mm
- Shift Levers
- SRAM NX Eagle, trigger, 12-speed
- Chainrings
- 32T
WHEELS
- Rear Hub
- Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h
- Front Hub
- Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
- Front Tire
- Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
- Rear Tire
- Butcher, GRID TRAIL casing, GRIPTON® compound, 27.5x2.3"
- Spokes
- DT Swiss Industry
- Rims
- Specialized 29F/27.5R, hookless alloy, 30mm inner width, tubeless ready
- Inner Tubes
- Standard, Presta Valve
Geometry
| S1 | S2 | S3 | S4 | S5 | |
|---|---|---|---|---|---|
| Crank Length | 170 | 170 | 170 | 170 | 170 |
| Handlebar Width | 800 | 800 | 800 | 800 | 800 |
| Stem Length | 40 | 40 | 40 | 40 | 40 |
| Saddle Width | 143 | 143 | 143 | 143 | 143 |
| Seatpost Length | 125 | 150 | 170 | 170 | 170 |
| B-B Drop | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 |
| Head-Tube Length | 95 | 100 | 110 | 120 | 130 |
| B-B Height | 347 | 347 | 347 | 347 | 347 |
| B-B Drop (low BB) | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 |
| Chain-Stay Length | 426 | 426 | 426 | 426 | 426 |
| Seat-Tube Length | 400 | 400 | 420 | 440 | 465 |
| Head-Tube Angle (low BB) | 63.2 | 63.2 | 63.2 | 63.2 | 63.2 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 |
| B-B Height (low BB) | 338 | 338 | 338 | 338 | 338 |
| Head-Tube Angle | 63.7 | 63.7 | 63.7 | 63.7 | 63.7 |
| Trail (low BB) | 141 | 141 | 141 | 141 | 141 |
| Fork Length (full) | 567 | 567 | 567 | 567 | 567 |
| Reach (low BB) | 417 | 437 | 462 | 487 | 512 |
| Front-Center (low BB) | 756 | 778 | 808 | 837 | 867 |
| Seat-Tube Angle | 76 | 76 | 76 | 76 | 76 |
| Stack (low BB) | 610 | 614 | 623 | 632 | 641 |
| Wheelbase | 1181 | 1203 | 1233 | 1264 | 1292 |
