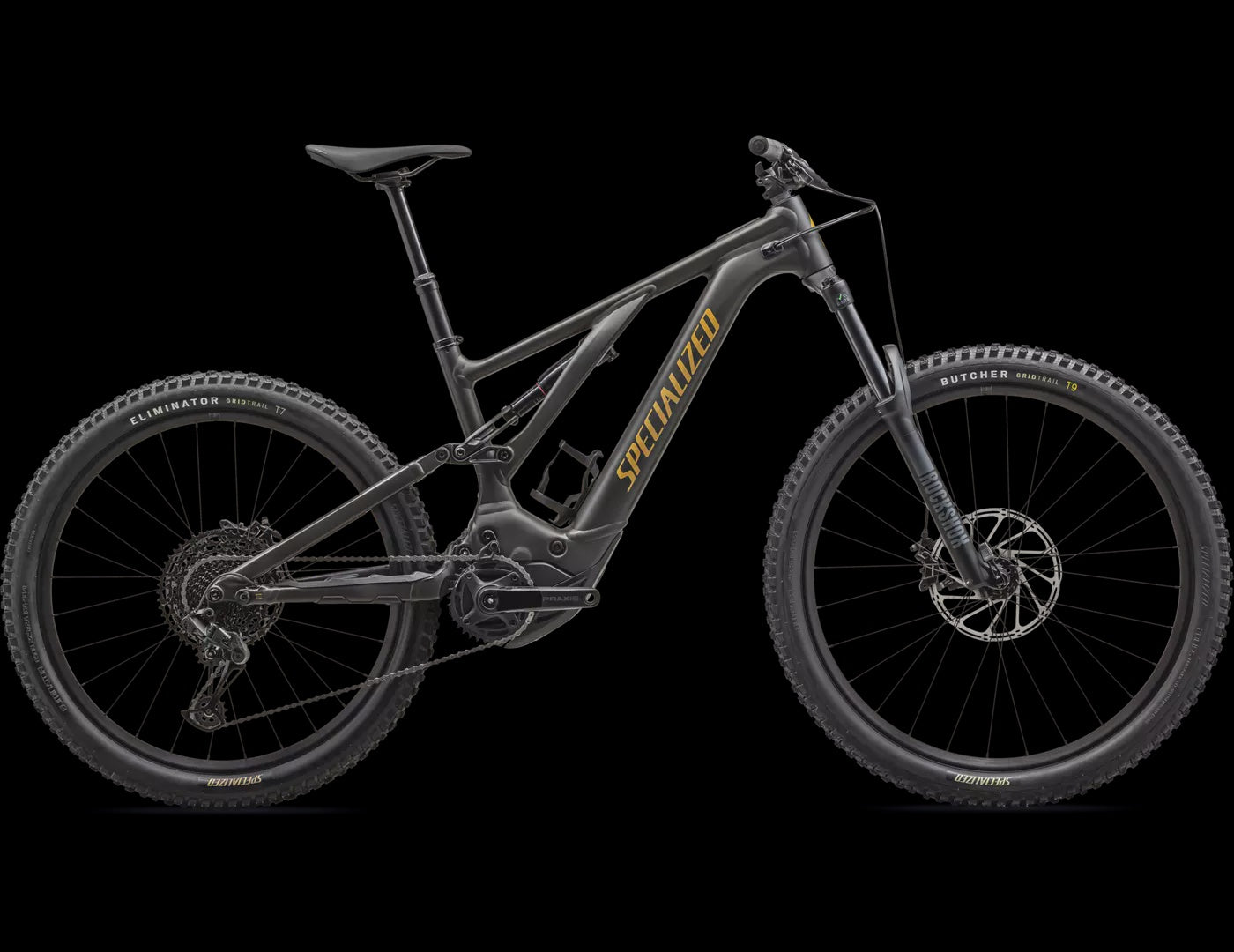

SPECIALIZED TURBO LEVO ALLOY 23

SPECIALIZED TURBO LEVO ALLOY 23

$7,900.00 NZD
$7,900.00 NZD
Sale Enquire Today
Shipping calculated at checkout.

Contact Us

07 571 0760

letsride@vanquishcycles.co.nz

1216 Cameron road, Tauranga, Gate Pa, NZ.

Book your test ride today - Call our Sales Manager 075710760 or email  letsride@vanquishcycles.co.nz

The all-new Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the new Levo raises that bar again.

It starts with our Turbo Full Power 2.2 motor and Turbo Connect Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.

More climbing, more descending, more miles, more fun. Spec’d with a no-fuss SRAM SX/NX drivetrain, trail-taming RockShox suspension, and a lightweight, durable alloy wheelset, the all-new Turbo Levo delivers more of everything that you love about trail riding.

  • Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and Turbo Connect Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.
  • The Levo’s Turbo Connect Unit (or “TCU”) is more than an “On-Off” button—it’s the brains of the bike. The TCU shows your battery level and power-assist mode. It also communicates, via ANT+/Bluetooth®, with our optional handlebar display to display even more information about your day’s ride.
  • A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
  • Levo offers two distinct geometry settings, allowing you to easily dial-in its performance for any riding style and any terrain. Bottom bracket height can be fine-tuned up or down by 7mm.
  • Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.
  • The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.
Specifications
FRAMESET
Seat Binder
Alloy, 38.6mm
Frame
Specialized M5 premium alloy, BB height adjust, S-Sizing, internal cable routing, 150mm travel, 148mm spacing
SUSPENSION
Fork
RockShox 35 Silver, 35mm stanchion, Turnkey damper, S1: 150mm travel, S2-S6: 160mm travel
Rear Shock
RockShox Deluxe Select R, rebound adjust, S1: 52.5x210mm, S2-S6: 55x210mm
COCKPIT
Stem
Alloy Trail Stem, 35mm bar bore
Saddle
Body Geometry Bridge Saddle, steel rails
Tape
Specialized Trail Grips
Handlebars
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
SeatPost
TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm
BRAKES
Rear Brake
SRAM Guide RE, 200mm
Front Brake
SRAM Guide RE, S1-S3: 200mm, S4-S6: 220mm
DRIVETRAIN
Crankset
Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm
Chain
SRAM NX Eagle, 12-speed
Cassette
SRAM NX Eagle, 12-speed, 11-50t
Shift Levers
SRAM SX Eagle, 12-speed
Rear Derailleur
SRAM SX Eagle, 12-speed
Chainrings
SRAM X-Sync Eagle, 104 BCD, 34t, steel
WHEELS
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
Spokes
DT Swiss Industry
Rear Tire
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Rims
Specialized 29, hookless alloy, 30mm inner width, tubeless ready
Front Hub
Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h
Inner Tubes
Standard, Presta Valve
E-BIKE
Wiring Harness
Custom Specialized wiring harness
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Motor
Specialized 2.2 Custom Rx Trail Tuned Motor
Battery
Specialized M3-700, Integrated battery, 700Wh
UI/Remote
Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote
Geometry
S1 S2 S3 S4 S5 S6
Crank Length 160 160 160 160 160 160
Seatpost Length 100 125 150 170 170 200
Handlebar Width 780 780 780 780 780 780
Stem Length 40 40 40 40 50 50
Saddle Width 155 155 143 143 143 143
Stack 605 617 626 635 644 653
Reach 412 432 452 477 502 532
Headtube Length 105 105 115 125 135 145
Headtube Angle 64.5 64.5 64.5 64.5 64.5 64.5
BB Height 352 350 350 350 350 350
BB Drop 25 27 27 27 27 27
Trail 130 130 130 130 130 130
Fork Length (full) 557 567 567 567 567 567
Fork Rake/Offset 44 44 44 44 44 44
Front Center 738 760 784 814 843 878
Chainstay Length 442 442 442 442 442 442
Wheelbase 1179 1200 1225 1255 1284 1318
Bike Standover Height 752 776 783 787 788 790
Seat Tube Length 380 390 405 425 445 465
Seat Tube Angle 78 77.2 76.7 76.2 76.2 76.2
Max Seatpost Insertion 210 220 240 255 275 295
Min Seatpost Insertion 80 80 80 80 80 80
