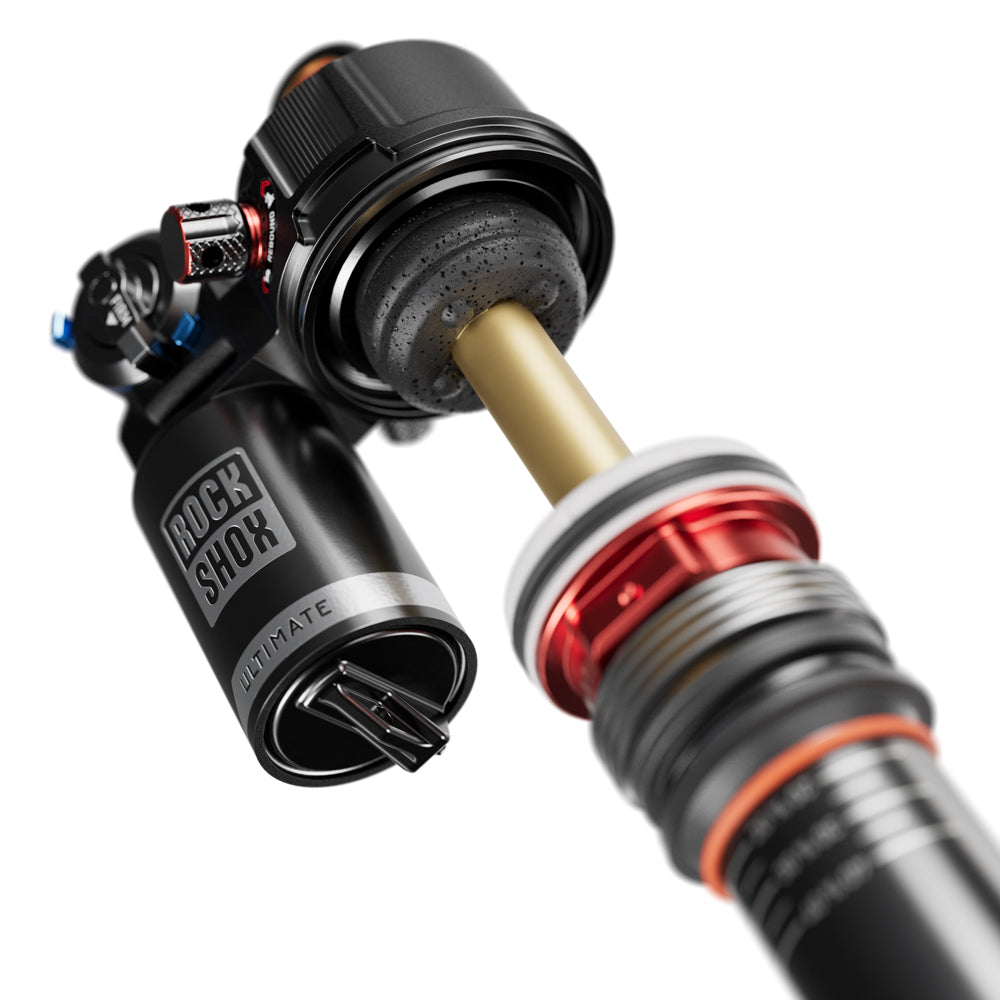

ROCKSHOX SUPER DELUXE ULTIMATE
Super Deluxe blends race-proven performance with a chassis that is easily tuned to match any frame, creating a versatile package, built for any trail, any time. The all-new LinearXL air spring delivers a consistent, predictable ride feel backed by a new bottom-out system, for confident end-stroke control, now with a higher Max PSI to accommodate greater system weights. A redesigned RC2T damper with intuitive HSC/LSC adjusters makes setup fast, understandable and easy to communicate, while a new main piston compression tune delivers Charger 3.2-matched midstroke support. The perfect match for Lyrik, yet just as at home on everything from downcountry to enduro— Super Deluxe Ultimate is built to push every ride further.
SPECIFICATIONS
| Eye to eye / Stroke |
165x45(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x45, 205x60(TR), 205x62.5(TR), 205x65(TR), 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65 |
| Damper Type |
RC2T, RC2T Hydraulic Bottom Out |
| Rebound tune |
R25, R55 |
| Compression tune |
C26, C30, C34, C37 |
| Lockout force |
X45 |
| Shaft Eyelet |

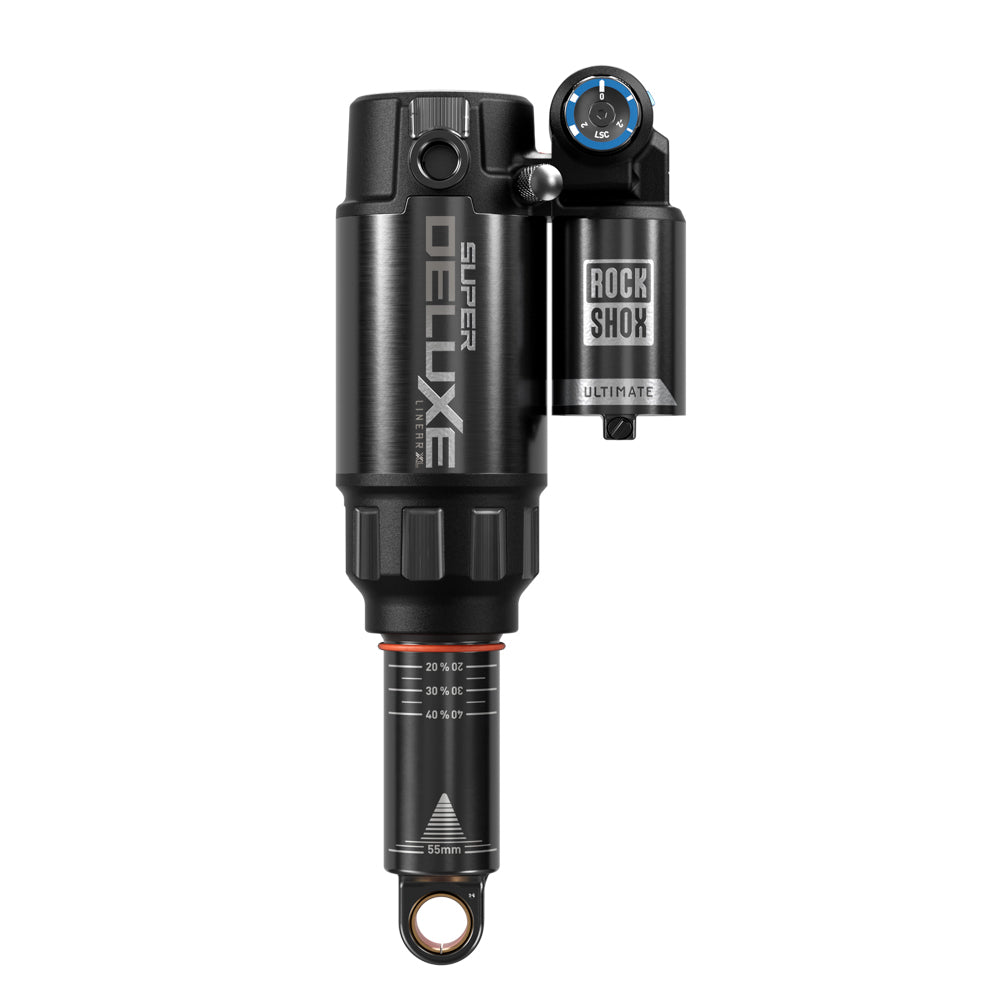

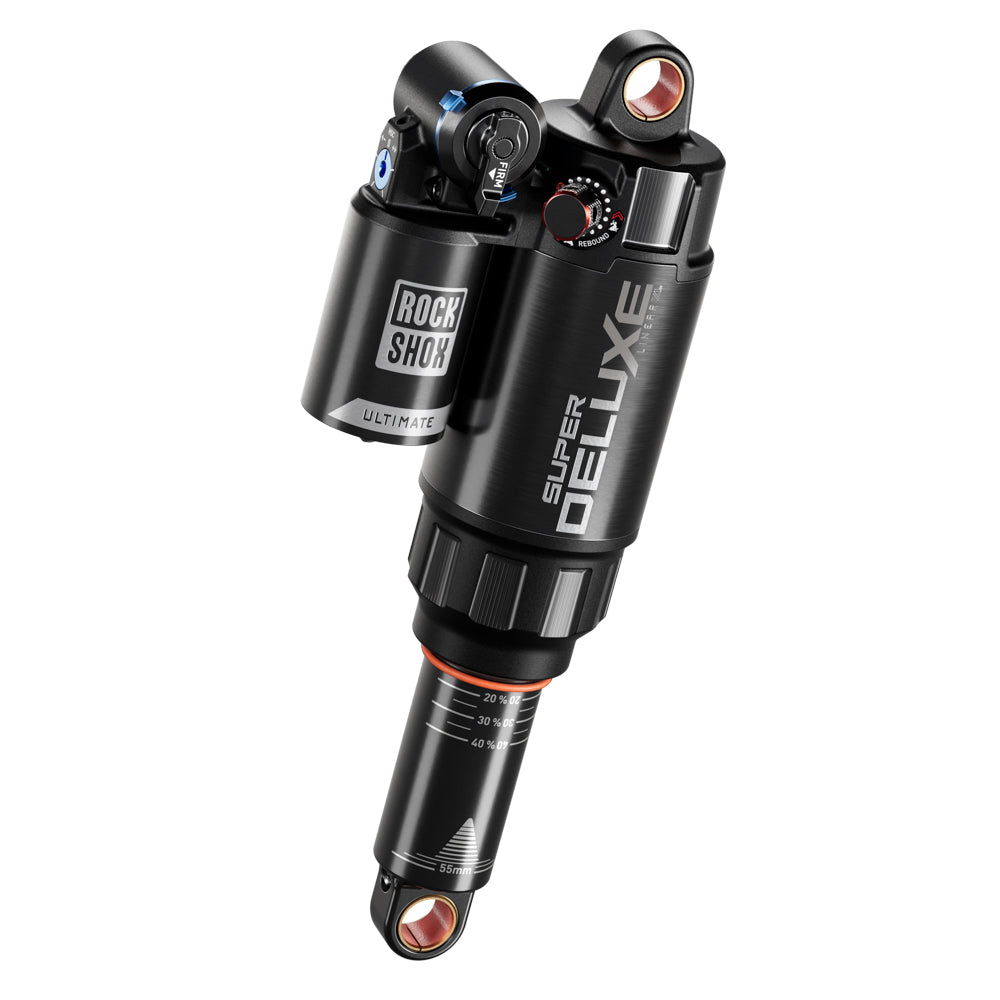

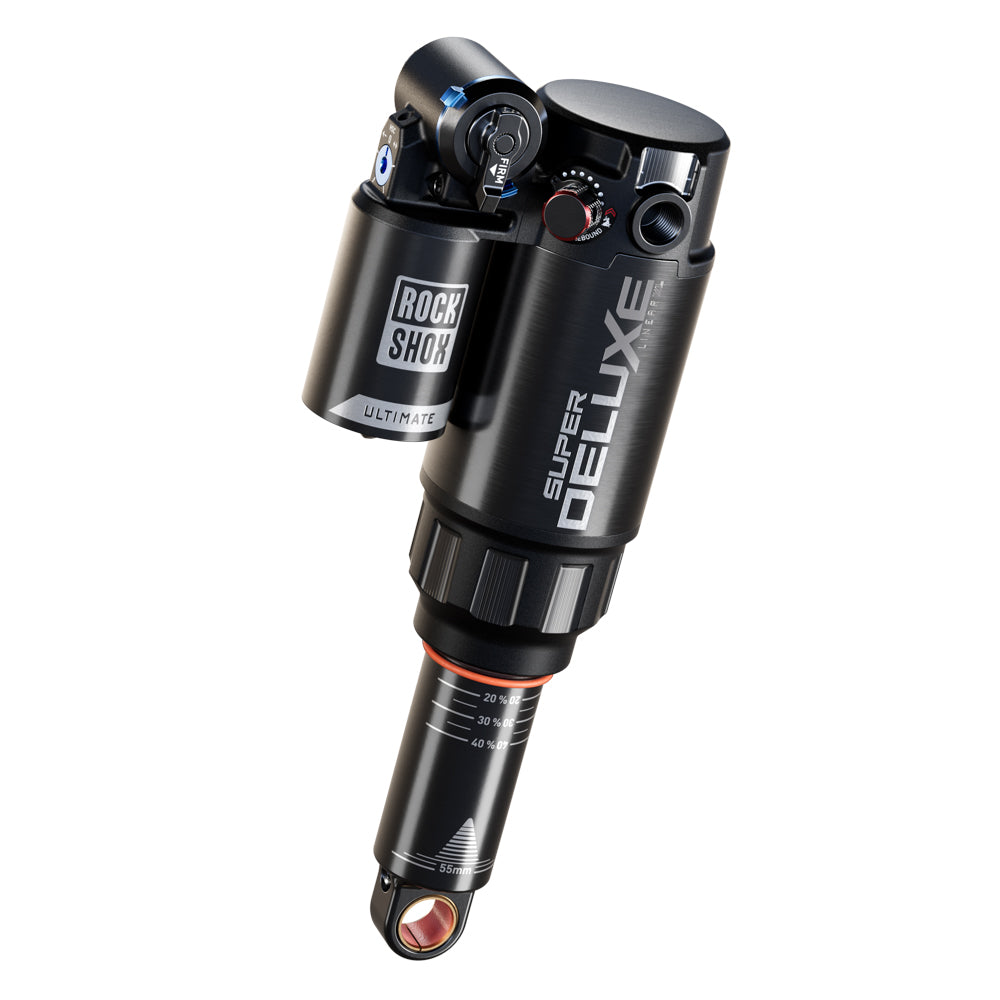

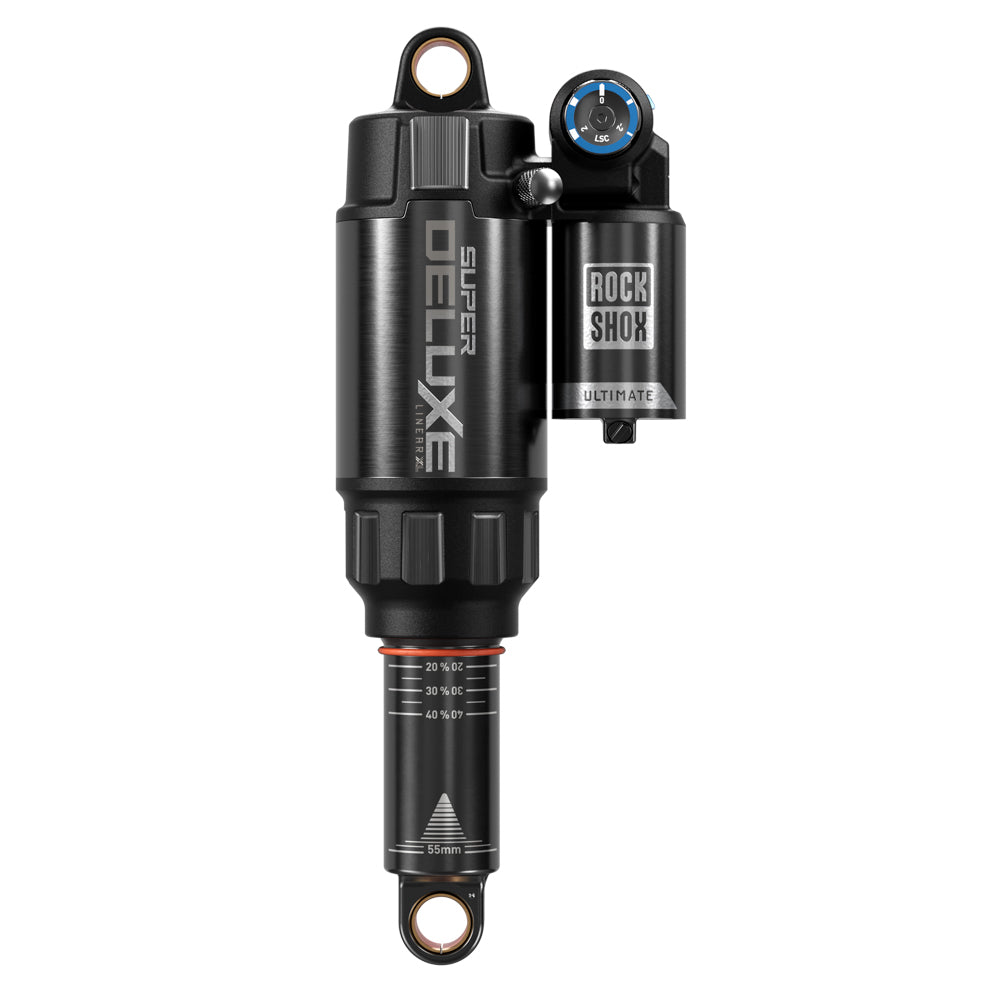

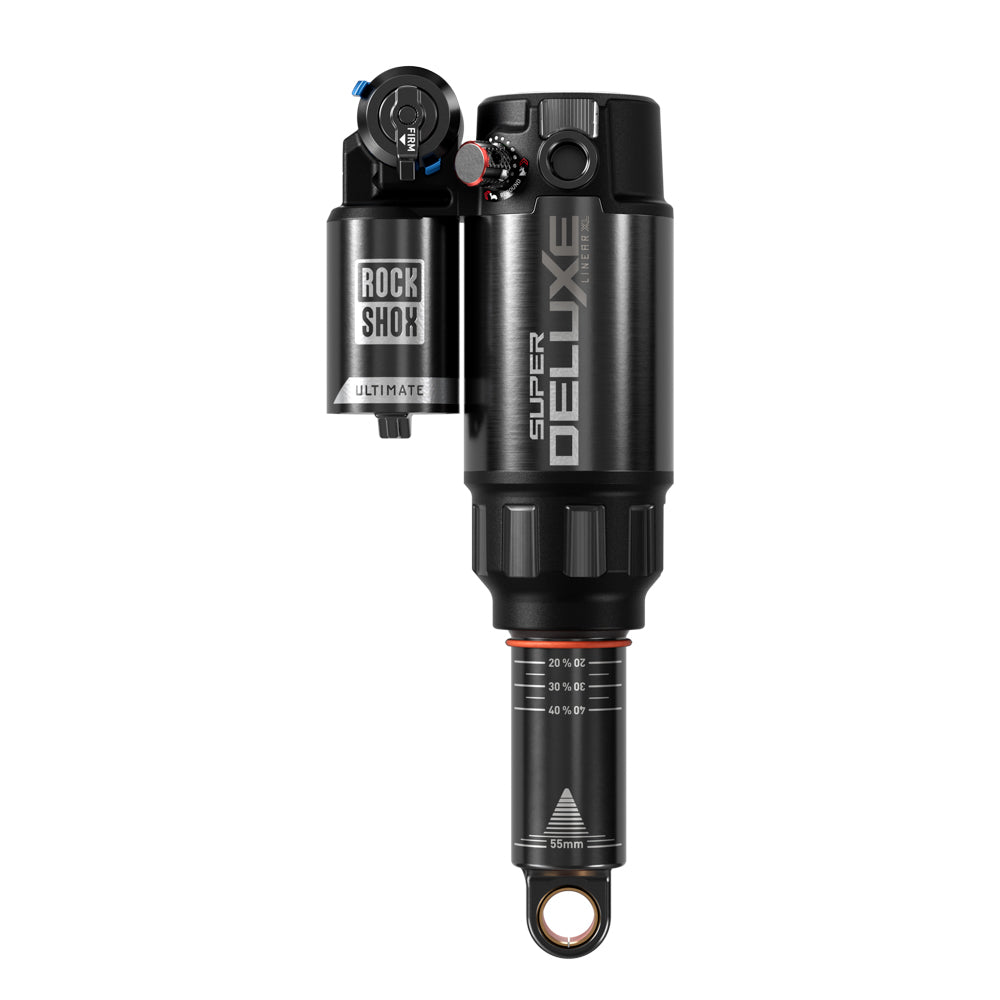

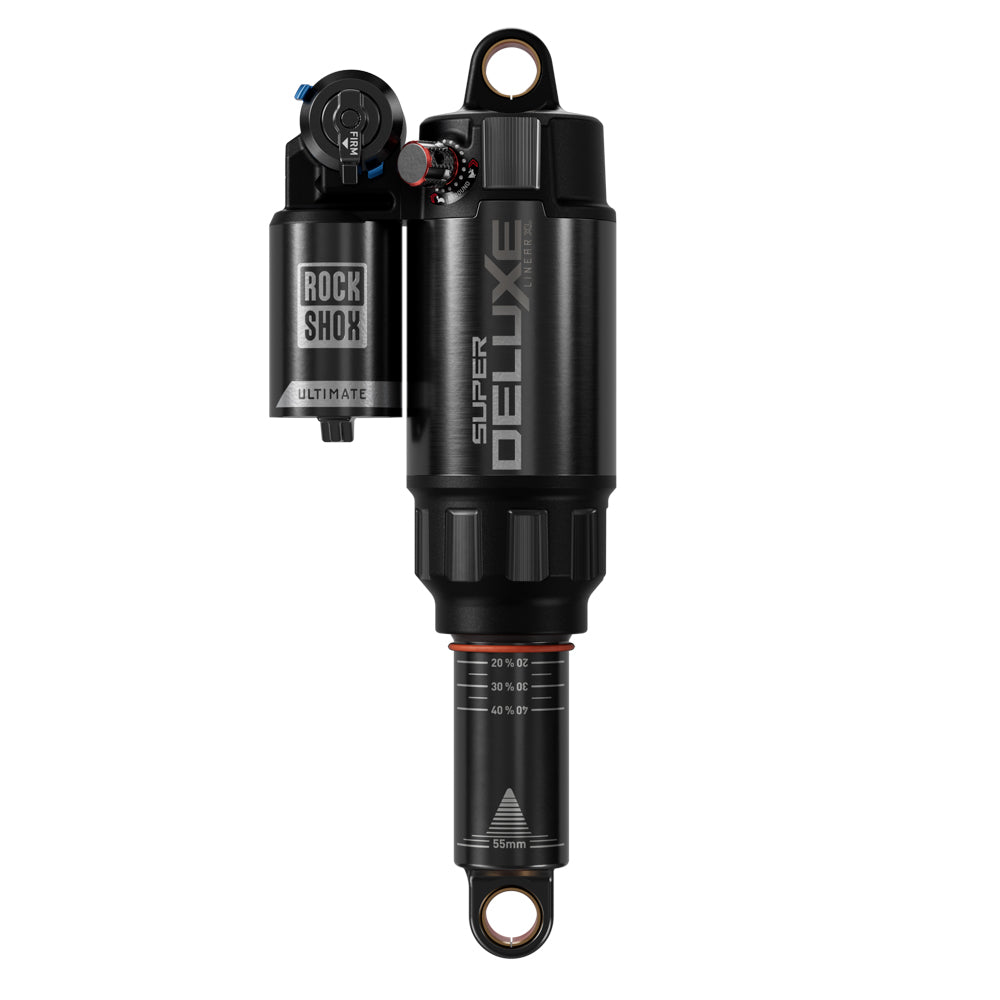

Standard, Trunnion |
| Body Eyelet |
No Bushing, No Bushing - 90 Deg Rotation, Standard |
|
E-Bike Approved |
E-bike Approved |
| Bottom Out |
Hydraulic Bottom Out, n/a |
| High Speed Tune |
n/a |
| Weight (g) |
530 |
| Weight Based On |
210x55, no hardware installed |
Note: Spring not included
|
|
FEATURES

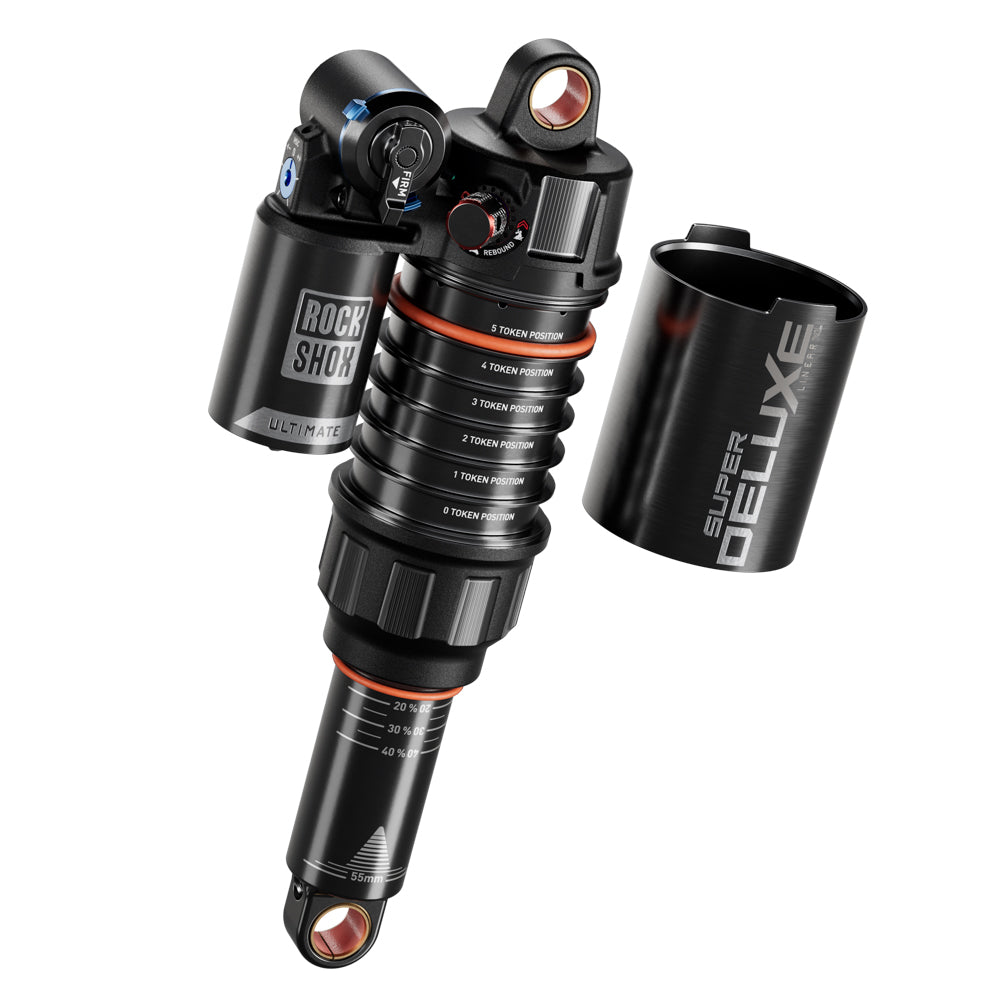

- NEW LinearXL air spring delivers a consistent and predictable ride feel tunable with easy-to-adjust "o-ring" tokens

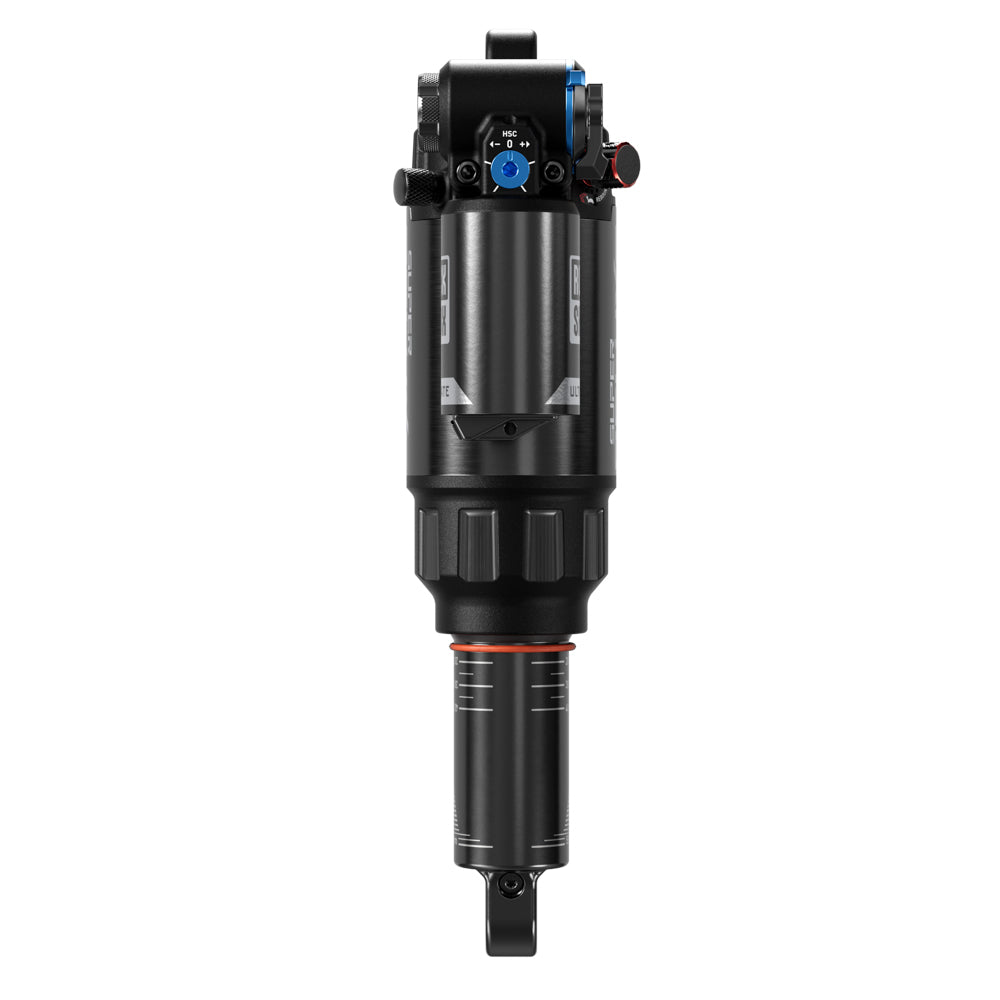

- NEW RC2T damper providing a wide, usable range of Low Speed Compression (LSC) and High Speed Compression (HSC) adjustments without any cross-talk
- NEW Numbered Compression adjuster for intuitive adjustments—start at "0" and easily add or decrease damping
- NEW Base valve with 40% reduction in IFP forces, making it the most supple shock on the market while maintaining perfect traction
- NEW Main piston compression tunes matched in performance to the Charger 3.2 damper, focused on providing mid-stroke support
- NEW Removable Rebound knob doubles as HSC adjuster
- NEW Jounce Bottom Out bumper paired with optional Hydraulic Bottom Out kicks in to restrict the flow of oil within the last 20% of travel, offering a soft hydraulic cushion that reduces harsh bottom out
- NEW Max PSI increased to accomodate higher system weights
- NEW “Bake-on” decals increase durability, keeping your product looking like new longer"
- 15 clicks of rebound adjustment providing uniform rebound curves paired with a broad adjustment range provide a consistent ride feel for a wide spectrum of rider weights
- 8x30 Bearing Adapter available for all standard eyelets, sold as an upgrade kit.
|
