KMC - E-Bike (BOSCH GEN 4) Chainrings

KMC - E-BIKE (BOSCH GEN 4) CHAINRINGS

A drive is efficient when chain and chainring work together perfectly. The most important factor here is an optimum form and force fit, which is created by a minimum of play between the drive components. Precision is the central KMC issue in the development of advanced drive components. For the Bosch Gen4 chainrings, for example, they designed a completely new tooth profile: It prevents the chain from falling off without forcing it onto the teeth. The result is the perfect balance of power and smooth running with a long service life.

AFSG4-34T

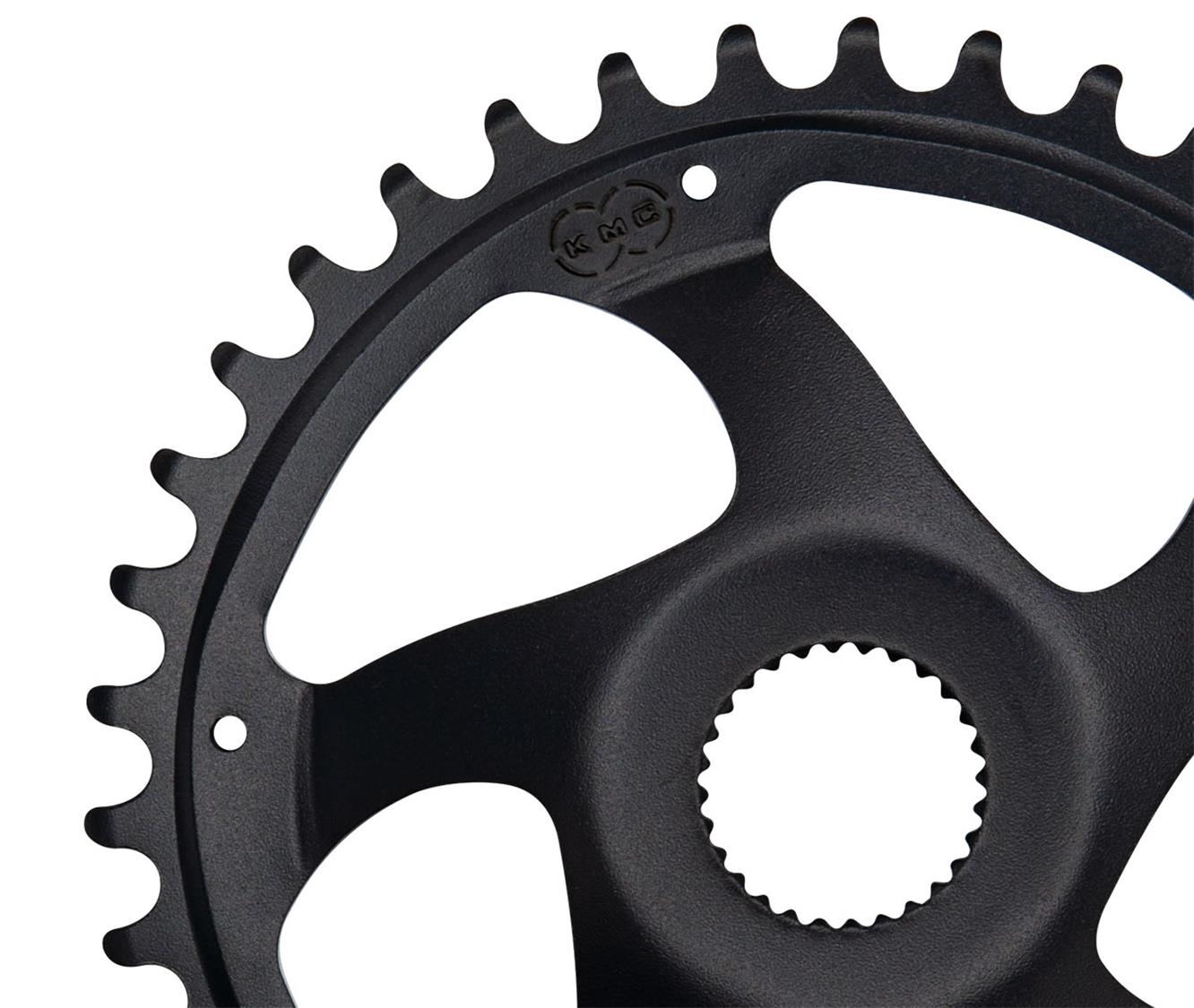

Chainring Bosch G4 Front 34T, CL 52mm, Black, 11/128"

• 34 teeth
• Size: 1/2" X 11/128"
• 52mm Chainline
• Treatment: Hardened Chromoly steel
• For Bosch 4 Systems
• Direct Mount; 9,0mm offset
• Perfectly matched to KMC chains - e1, e12, e11, e10, e9 and e8 chains
• Maximum efficiency which saves battery
• SHI-12 spd compatible

​AFSG4-38T

Chainring Bosch G4 Front 38T, CL 50mm, Black, 11/128"

• 38 teeth
• Size: 1/2" X 11/128""
• 50mm Chainline
• Treatment: Hardened Chromoly steel
• For Bosch Gen4 Systems
• Direct Mount; 7,0mm offset
• Perfectly matched to KMC chains - e1, e12, e11, e10, e9 and e8 chains
• Maximum efficiency which saves battery
• SHI-12 spd compatible
