Specialized

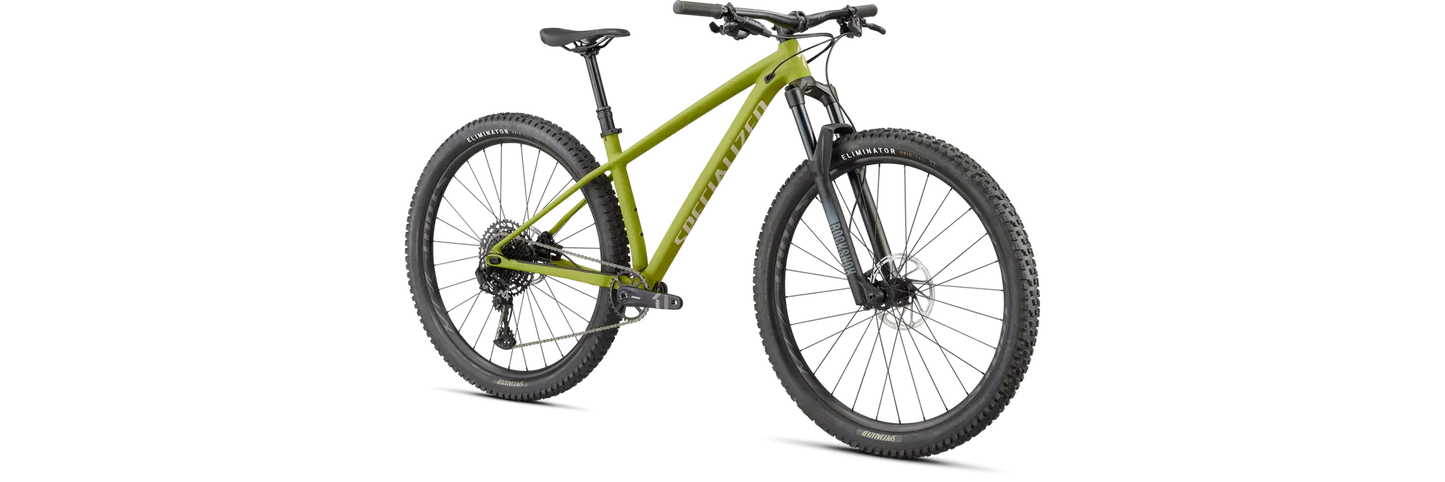

FUSE COMP 29 MY 22 SATIN OLIVE GREEN XS SPECIALIZED
FUSE COMP 29 MY 22 SATIN OLIVE GREEN XS SPECIALIZED
Couldn't load pickup availability
Enquire on availability - Prompt service guaranteed
The Fuse Comp 29 punches way above its weight class thanks to a light-yet-burly M4 aluminum chassis, frame geometry that lends the bike both playfulness and capability, and parts that withstand a serious flogging.
ROWDY BY DESIGN
The Fuse is loaded with smart touches. The wide-diameter down tube boosts stiffness. The low-slung top tube improves maneuverability. And while this Fuse’s 29x2.6 tires give it a precise, nimble feel, the M4 aluminum frame is also compatible with 27.5+ wheels and tires.
PERFECTLY DIALED
If you fail to nail the geometry, advanced materials and innovative designs still amount to nothing on the trail. Fuse gets it right. The long reach gives you even weight distribution. The slack head angle lends confidence on sketchy descents. The steep seat angle makes quick work of steep climbs.
- 130-millimeters of plush suspension courtesy of a RockShox Recon RL fork.
- Highlights include powerful SRAM Level TRL disc brakes and a TranzX dropper post.
- SRAM NX Eagle drivetrain gives you single-ring simplicity and gearing to spare.
- Frame
- Specialized M4 Premium Aluminum, 148mm thru-axle, adjustable dropout, SS compatible, tapered head tube, internal cable routing
- Seat Binder
- Alloy, 38.6mm
- Fork
- RockShox Recon RL, air spring, 46mm offset, 130mm of travel
- Stem
- Stout 3D-forged alloy, 31.8mm, 6-degree rise
- Handlebars
- Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm / 780mm width, 31.8mm
- Tape
- Specialized Trail Grips
- Saddle
- Bridge Comp, Hollow Cr-mo rails, 155/143mm
- SeatPost
- TranzX Dropper, 34.9mm, XS-S: 100mm, M: 125mm, L-XL: 150mm
- Front Brake
- SRAM Level TRL, hydraulic disc, 4-piston, 200/180mm
- Rear Brake
- SRAM Level TRL, hydraulic disc, 2-piston, 180/160mm
- Rear Derailleur
- SRAM NX Eagle, 12-speed
- Shift Levers
- SRAM NX Eagle, trigger, 12-speed
- Cassette
- SRAM NX Eagle, 12-speed, 11-50t
- Chain
- SRAM, SX Eagle, 12-speed
- Crankset
- SRAM, X1 Alloy Eagle, 12-speed
- Chainrings
- 32T
- Bottom Bracket
- SRAM DUB, BSA 73mm, Threaded
- Rims
- Specialized Alloy, Tubeless Ready, 29mm internal width, 28h
- Front Hub
- Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
- Rear Hub
- Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
- Front Tire
- Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 29x2.6"
- Rear Tire
- Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 29x2.6"
- Inner Tubes
- TUBES,STANDARD 48MM PV LOW LEAD 29x1.75/2.4, MAXXIS BRAND
- Spokes
- Stainless, 14g
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Crank Length | 170 | 170 | 170 | 170 | 175 |
| Handlebar Width | 750 | 750 | 780 | 780 | 780 |
| Stem Length | 45 | 45 | 45 | 45 | 45 |
| Saddle Width | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 356 | 356 | 406 | 456 | 456 |
| Front-Center | 698 | 718 | 738 | 764 | 790 |
| Seat-Tube Length | 340 | 375 | 410 | 455 | 505 |
| Seat-Tube Angle | 74 | 74 | 74 | 74 | 74 |
| B-B Height | 315 | 315 | 315 | 315 | 315 |
| Chain-Stay Length - long | 435 | 435 | 435 | 435 | 435 |
| Trail | 113 | 113 | 113 | 113 | 113 |
| Wheelbase | 1122 | 1142 | 1162 | 1188 | 1214 |
| Stack | 625 | 625 | 625 | 639 | 652 |
| Reach | 400 | 420 | 440 | 460 | 480 |
| Fork Rake/Offset | 46 | 46 | 46 | 46 | 46 |
| Fork Length (full) | 540 | 540 | 540 | 540 | 540 |
| Chain-Stay Length - short | 420 | 420 | 420 | 420 | 420 |
| Bike Stand-Over Height | 727 | 747 | 750 | 754 | 793 |
| Head-Tube Angle | 66.5 | 66.5 | 66.5 | 66.5 | 66.5 |
| B-B Drop | 60 | 60 | 60 | 60 | 60 |
| Head-Tube Length | 95 | 95 | 110 | 125 | 95 |
| Top-Tube Length (horizontal) | 579 | 599 | 619 | 643 | 667 |
