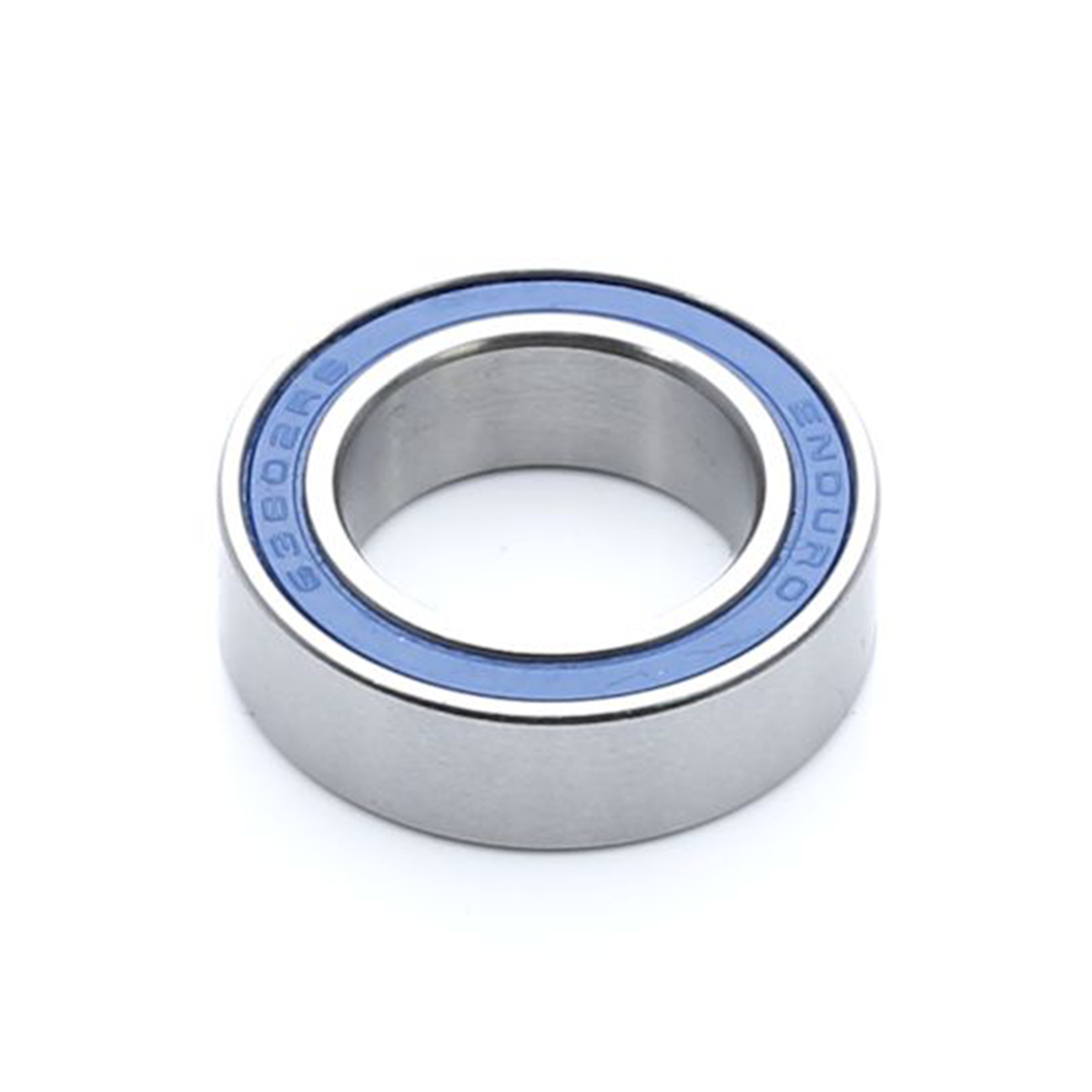

Enduro Radial Bearing 63802 15 x 24 x 7

63802 LLB - ABEC-3 Radial Bearing (C3 clearance) - 15mm x 24mm x 7mm -

Extra-wide radial bearing used as a hub bearing for some hub designs, but more often is used as a pivot bearing, though the MAX-type version of this bearing is better suited for suspension use. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls, dual-lip LLB seals, and 90% fill with high pressure water proof grease to withstand daily abuse of use and the elements.

The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.

Static load - 283lbf / 1.26kN
Weight - 5.6g
