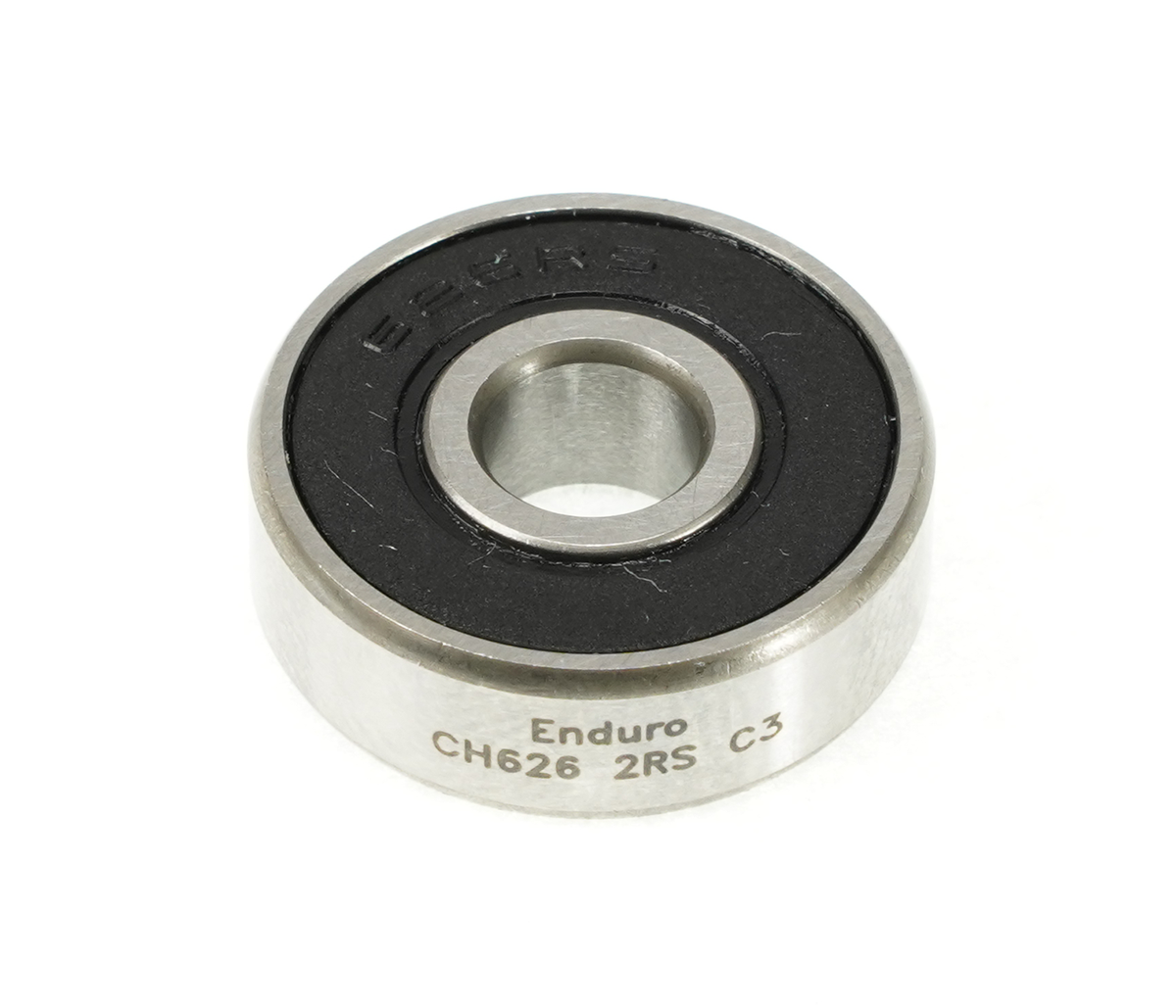

Enduro Radial Bearing 626 6 x 19 x 6

626 - ABEC-5 Radial Bearing - 6mm x 19mm x 6mm -

ABEC-3

This radial bearing has been used as a pedal bearing and as a pivot bearing on some full suspension designs though the MAX-type version of this bearing is better suited for pivot applications. This ABEC-3 bearing features 52100 High-Carbon Chromium alloy races paired with Grade 10 balls and dual-lip labyrinth (LLB) seals to withstand the outside elements, and to contain the 90% fill Mobil XHP 222 high pressure water proof synthetic grease.

Ceramic Hybrid

This ABEC-5, Ceramic-hybrid bearing features deep-groove design 52100 High-Carbon Chromium alloy races, with grade 5 Silicon-Nitride Ceramic balls, dual seals to withstand the outside elements, and to contain the 90% fill Kluber NBU52 ultra-smooth and sticky, water-proof grease. Si3N4 ceramic balls reduce bearing wear and increase bearing life by eliminating steel on steel contact within the bearing.

this radial bearing has been used as a pedal bearing and as a pivot bearing on some full suspension designs though the MAX-type version of this bearing is better suited for pivot applications.

The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls possible and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.

Static load - 200lbf / 0.89kN
Weight - 6.92g
