Vanquish cycles

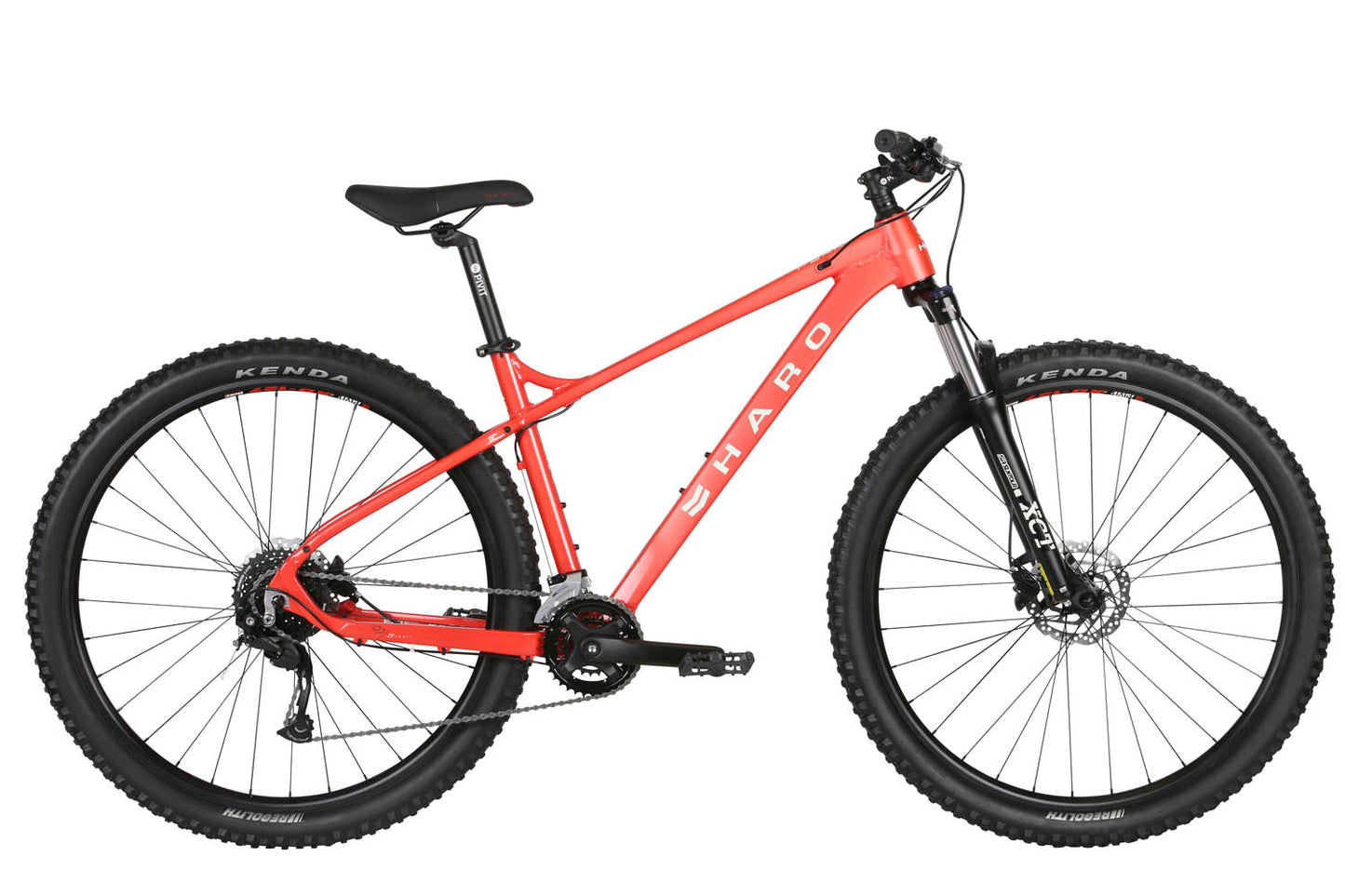

DOUBLE PEAK 27.5 TRAIL BIKE
DOUBLE PEAK 27.5 TRAIL BIKE
Regular price
$0.00 NZD
Regular price
Sale price
$0.00 NZD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The 2021 Double Peak 27.5" Trail model features a brand new frame design, made from X6 series aluminum, with a low stand-over height for a low center of gravity and internal cable routing. The DP Trail model features a Shimano Alivio 2x9 drive train, versatile and capable of handling a wide variety of terrain. It glides along on 27.5" double wall rims, stainless spokes and new Kenda Regolith 2.4" tires. The front end features a Suntour XCT-30 100mm fork with hydraulic lockout. The Trail appreciates speed, but it can stop on a dime thanks to its Shimano MT-200 Hydraulic disc brakes.
Features
Features
- New Double Peak X6 Series frame w/ tapered head tube
- Suntour XCT-30 HLO 100mm travel fork
- Aluminum crankset, 36/22T, 2x9
- Altus M2020-M 2x9 front derailleur
- New Alivio M3100 SGS 9-spd rear derailleur
- Shimano HG-200 9-spd 11-36T cassette
- MX-21 27.5"x27mm Aluminum DW rims
- KENDA Regolith 27.5"x2.4" tires
- Shimano MT-200 hydraulic disc brakeset, Center Lock
Specifications
| FRAMESET | |
|---|---|
| Frame | New 2021 Haro Double Peak 27.5" X6 Aluminum series | Tapered head tube | Internal housing routing | Chainstay disc brake mount | 73mm threaded BSA |
| Fork | SR Suntour XCT-30 | 27.5x100mm travel | Hydraulic lockout |
| Colors | Matte Black or Red |
| DRIVETRAIN | |
| Cranks | Shimano MT-101 | 36/22T | 2x9-Spd |
| Pedals | FPD Nylon body | Chromoly axles | Platform |
| Chain | KMC Z9 9-spd |
| Bottom Bracket | Shimano Sealed cartridge |
| Front Derailleur | Shimano Altus | FD-M2020 | 2x9-spd | Top Swing |
| Rear Derailleur | New Alivio M3100 SGS 9-spd | Shadow design |
| Derailleur Shifter | Shimano SL-M2010-2L | 2x9-spd |
| Freewheel/Cassette | Shimano HG-200 9-spd 11-36T |
| WHEELS | |
| Tires | KENDA Regolith | 27.5"x2.4" |
| Wheels/Rims | MX-21 27.5"x27mm Aluminum double wall |
| Hubs | Shimano TX-505 alloy | Center Lock Disc | cassette 32h |
| BRAKING SYSTEM | |
| Brakes | Shimano BR-MT200 hydraulic | 160mm Center Lock Rotors |
| Brake Levers | Shimano BL-MT200 |
| OTHER COMPONENTS | |
| Grips/Tape | WTB Trail II |
| Handlebar | Pivit aluminum | 15mm riser bar | 31.8mm |
| Stem | Pivit forged stem |
| Headset | 1-1/8"-1.5" Threadless for 50/62mm OD headtube | 10.0mm Aluminum top cover |
| Saddle | New Haro Double Peak |
| Seat Post | Pivit aluminum micro adjust 31.6mm |
| Seat Clamp | Pivit aluminum 34.9mm quick release |
| Extras | Internal housing routing |
