Specialized

CHISEL COMP MY 22 SPECIALIZED

CHISEL COMP MY 22 SPECIALIZED

$2,900.00 NZD
$2,900.00 NZD
Sale Enquire Today
Shipping calculated at checkout.

Contact Us

07 571 0760

letsride@vanquishcycles.co.nz

1216 Cameron road, Tauranga, Gate Pa, NZ.

Enquire on availability - Prompt service guaranteed

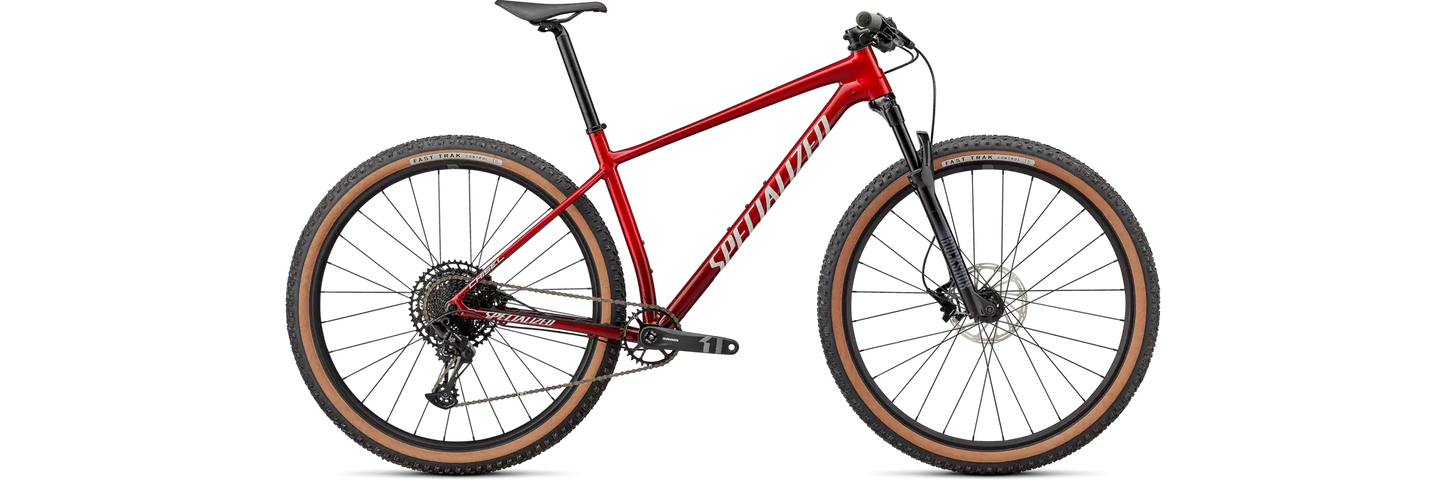

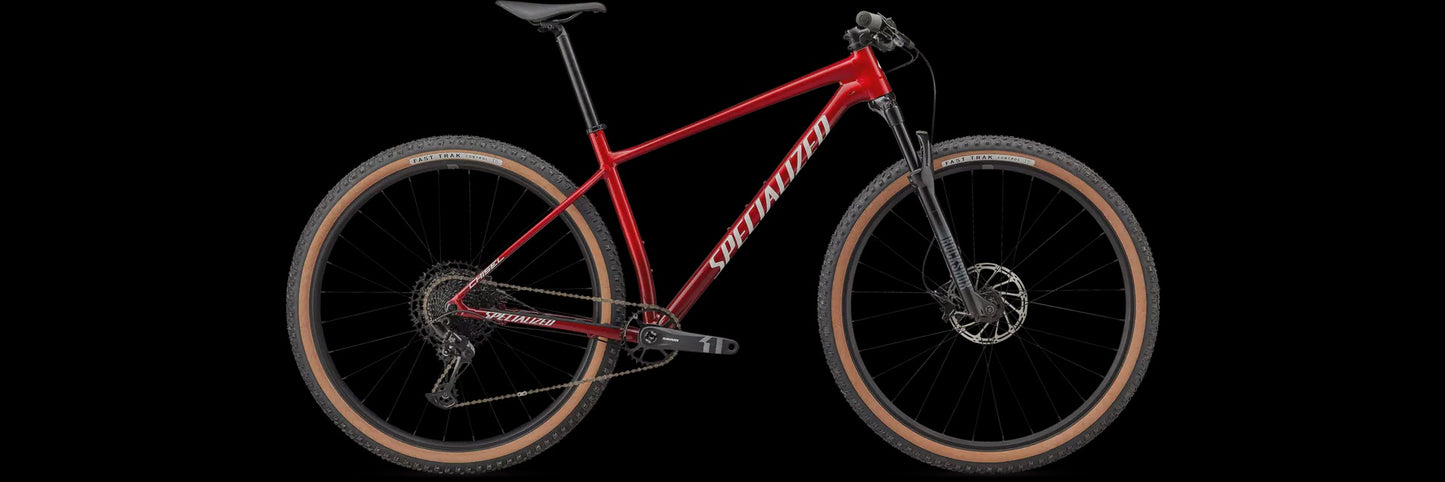

The all-new Chisel Comp is the perfect bike to begin your journey into XC riding and racing, with all of the features to get you to that elusive "top step" at a price that leaves some jingle jangle left over for race entries. This Chisel comes dressed with SRAM's crisp-shifting NX Eagle 1x12 drivetrain and powerful Level T hydraulic disc brakes, a 100mm (Size XS: 80mm) RockShox Judy Gold fork, and 25mm internal width alloy wheels wrapped in 2.35 Fast Track Control casing tires.
  • We asked ourselves, “How do we bring pro-level performance down to a price more riders can afford?” D'Aluisio Smartweld Technology, that's how. Smartweld allows us to create the most consistent, high-strength welds possible while taking full advantage of compliant, hydroformed alloy tubes. The result? One of the lightest alloy hardtail frames out there at 1,350g, which also features size-tuned stiffness.
  • The new Chisel also houses all of the modern features that you expect from an XC bike, like Progressive XC Geometry with a 68-degree headtube angle and longer reach, internal cable routing, a threaded bottom bracket, boost spacing, 30.9mm dropper post compatibility, and 1x-only drivetrains.
Specifications
FRAMESET
Seat Binder
Specialized Alloy, 34.9mm
Frame
Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible
SUSPENSION
Fork
RockShox Judy Gold, Motion Control damper, Solo Air, 42mm offset, 15x110mm thru-axle, 100mm of travel (XS - 80mm travel)
COCKPIT
Stem
3D-forged alloy, 31.8mm, 7-degree rise
Saddle
Body Geometry Power Sport, steel rails
Handlebars
Specialized Alloy XC minirise, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm
SeatPost
Specialized Alloy, Single Bolt, 30.9mm
Tape
Specialized Trail Grips
BRAKES
Front Brake
SRAM Level T hydraulic disc, 2-Piston Caliper, Centerline Rotor, 160mm (XS/S/M), 180mm (L/XL)
Rear Brake
SRAM Level T, Post Mount, 160mm Centerline Rotor
DRIVETRAIN
Bottom Bracket
SRAM DUB, BSA 73mm, Threaded
Rear Derailleur
SRAM NX Eagle, 12-speed
Cassette
SRAM NX Eagle, 12-speed, 11-50t
Shift Levers
SRAM NX Eagle, trigger, 12-speed
Crankset
SRAM X1000 Eagle, DUB, 170/175mm 32T
Chain
SRAM, SX Eagle, 12-speed
WHEELS
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rims
Specialized Alloy, hookless, Tubeless ready, 25mm inner width
Front Tire
Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35
Rear Tire
Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35
Inner Tubes
Standard 40mm PV 29x1.75-2.4
WHEELS & TIRES
Spokes
Stainless, 14g
Geometry
XS S M L XL
Crank Length 165m 170 175 175 175
Handlebar Width 750 750 750 750 750
Stem Length 60 60 70 70 70
Saddle Width 155 155 143 143 143
Seatpost Length 350 400 400 400 400
Head Tube Angle 68 68 68 68 68
BB Drop 68 63 63 63 63
Front Center 647 674 699 730 760
Chainstay Length 432 432 432 432 432
Fork Rake/Offset 44 44 44 44 44
Bike Standover Height 732 762 792 816 847
Stack 591 605 605 619 633
Head Tube Length 95 95 95 110 125
Fork Length, Full 486 506 506 506 506
Reach 385 405 430 455 480
BB Height 304 309 309 309 309
Wheelbase 1070 1099 1124 1154 1185
Seat Tube Angle 74 74 74 74 74
Top Tube Length, Horizontal 555 578 603 632 661
Seat Tube Length 367 400 430 470 520
Trail 103 103 103 103 103
