Campagnolo Hyperon Ultra Carbon Wheels

HYPERON ULTRA

THE MAGIC RATIO OF PERFORMANCE

Hyperon Ultra is the new Campagnolo wheel designed for the most refined and demanding cyclists. A wheel that embodies the true product perfection that stems from unparalleled Campagnolo experience.

To create this jewel, we have combined the knowledge of our engineers and the most expert testers, together with feedback from pro cyclists. The result is a new wheelset for racing bikes with the magic ratio of features: lightweight construction, unmatched reactivity and superior handling.

We have taken H.U.L.C. molding technology and C-LUX finish to the next level to make Hyperon Ultras easy on the eye and light on the scales.

With the aim of enhancing cyclists’ riding experience and performance, we have achieved unmatched reactivity with the new Head-2-Bay system, created to ensure high precision head-to-bay coupling, to which we have fitted super-smooth CULT bearings and a new lighter N3W freewheel body.

For superior handling, we relied on historic Campagnolo knowhow and also applied the famous Aero-MoMag technology to the Hyperon Ultra wheels, ensuring benefits in terms of aerodynamics and even better looks. The rims feature the tried and tested 2-Way Fit technology with no holes on the upper bridge. Their special single-joint construction guarantees and further increases wheelset stiffness.

With an inner width of 21mm and rim profile of 37mm, Hyperon Ultra is a wheel that adapts to the needs of even the most demanding cyclist while enhancing the looks of any bike.

HYPERON ULTRA DB: The magic ratio of performance.

Versions available: Campagnolo N3W™ freewheel body, Shimano HG, Sram XDR™


SPECIFICATIONS

SPOKES
21 circular-section slim steel spokes on the front in a two-cross pattern
24 circular-section slim steel spokes on the rear in a two-cross pattern

VERSIONS AND WEIGHTS
Campagnolo N3W™ body
HG11 body
XDR body
Available for 2-Way Fit: 1.240 g

COMPATIBILITY

Campagnolo 10/11/12 speed cassette
Shimano/SRAM 10/11 speed cassette
SRAM 12 speed cassette

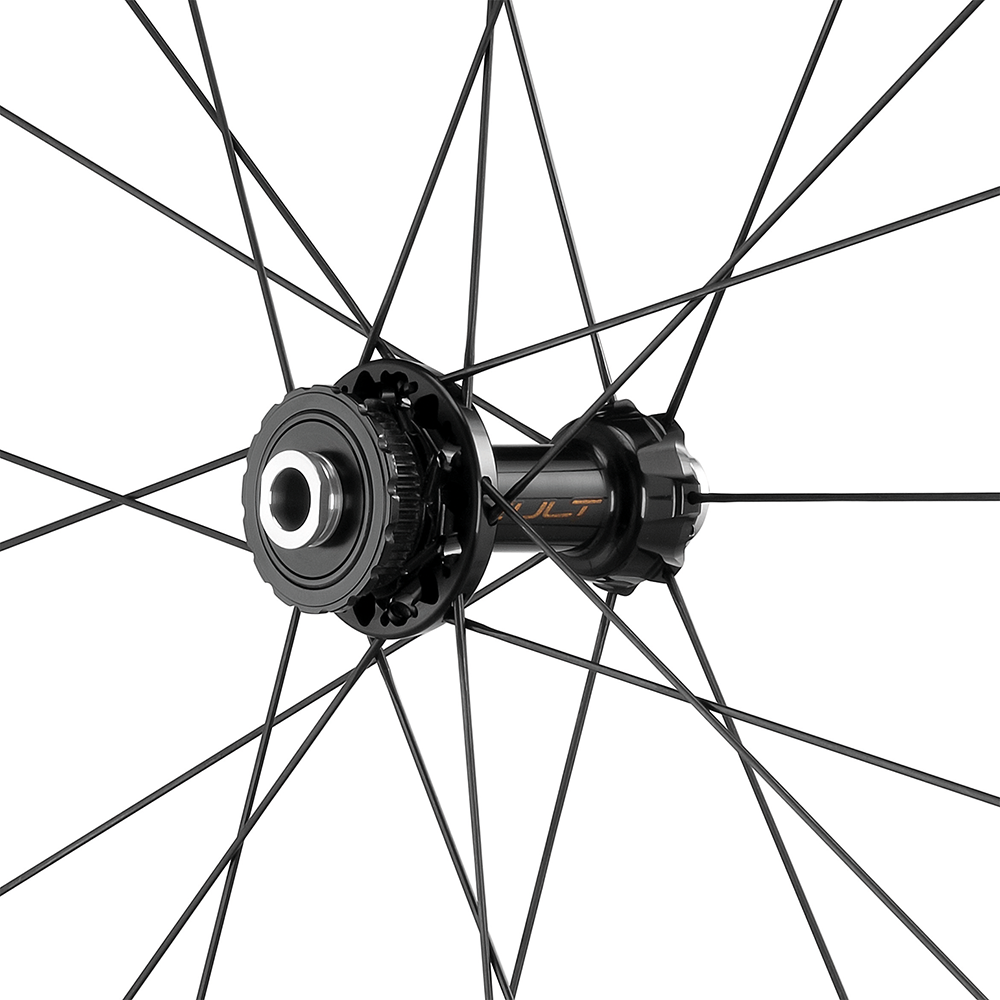

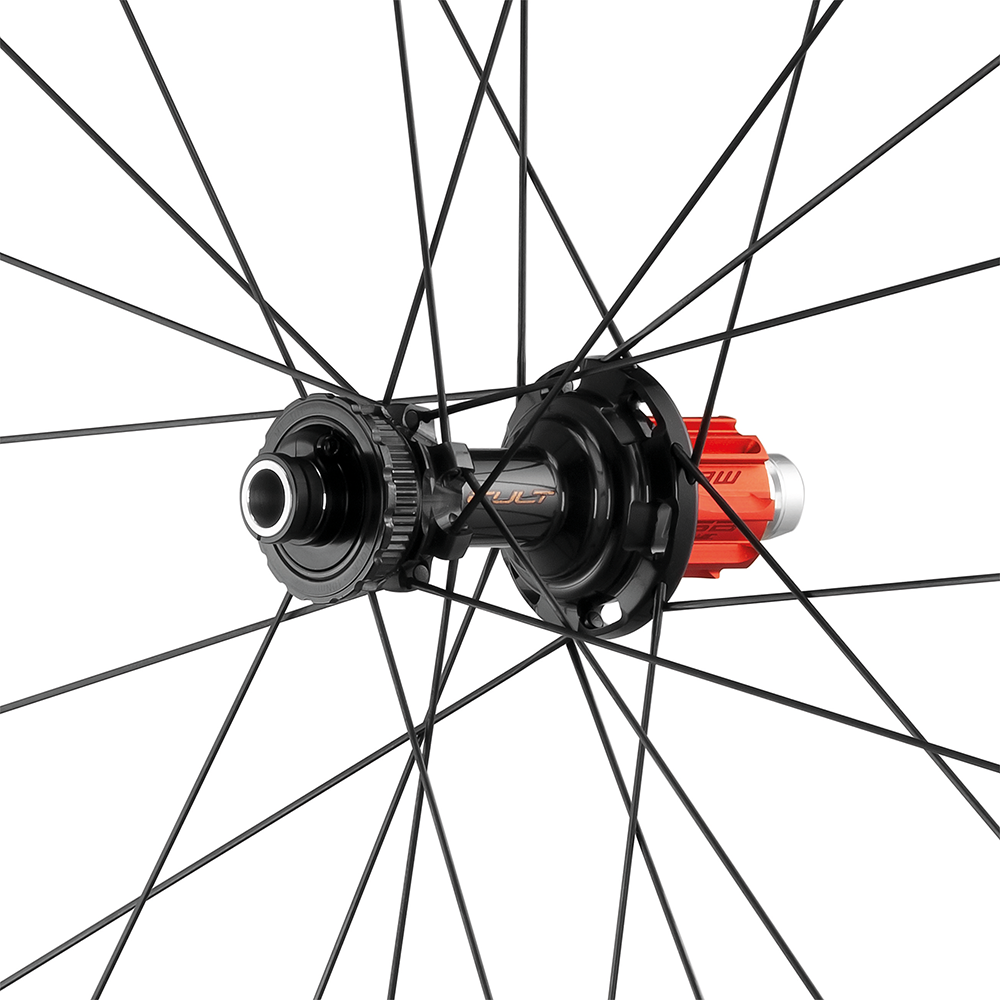

HUB
Monolithic hub in Black Aluminum
CULT bearings
Hub edges: 100 mm front, 142 mm rear
Axle material: aluminum

RIM
Profile height: 37 mm
Material used for rim: Carbon
Rim section (height/width): 37/ 26.7 mm
Internal rim width: 21 mm
Water Transfer Graphics

TYRES
Clinchers and tubeless
Tubular

ASSEMBLY
The Ruota Hyperon Ultra™ Disc Brake wheel is entirely hand-assembled by a specialised Campagnolo® technician and is 100% checked by electronic instrumentation. This procedure ensures that every single Campagnolo® wheel offers maximum performance and reliability

COMES WITH
50 mm Tubeless valve
Valve reducer bushing
2 levers in composite for tire removal
User manual
N3W™ adapter kit for 11-12s cassette compatibility (Campagnolo N3W™ body version)
Padded wheel bags
Accessory sack

2-WAY FIT

1.240 g (The weight refers to the couple of wheels and does not include the quick release, the rim tape, the identity card and the hub caps)
