Bombtrack Beyond 2
Bombtrack Beyond 2
Couldn't load pickup availability

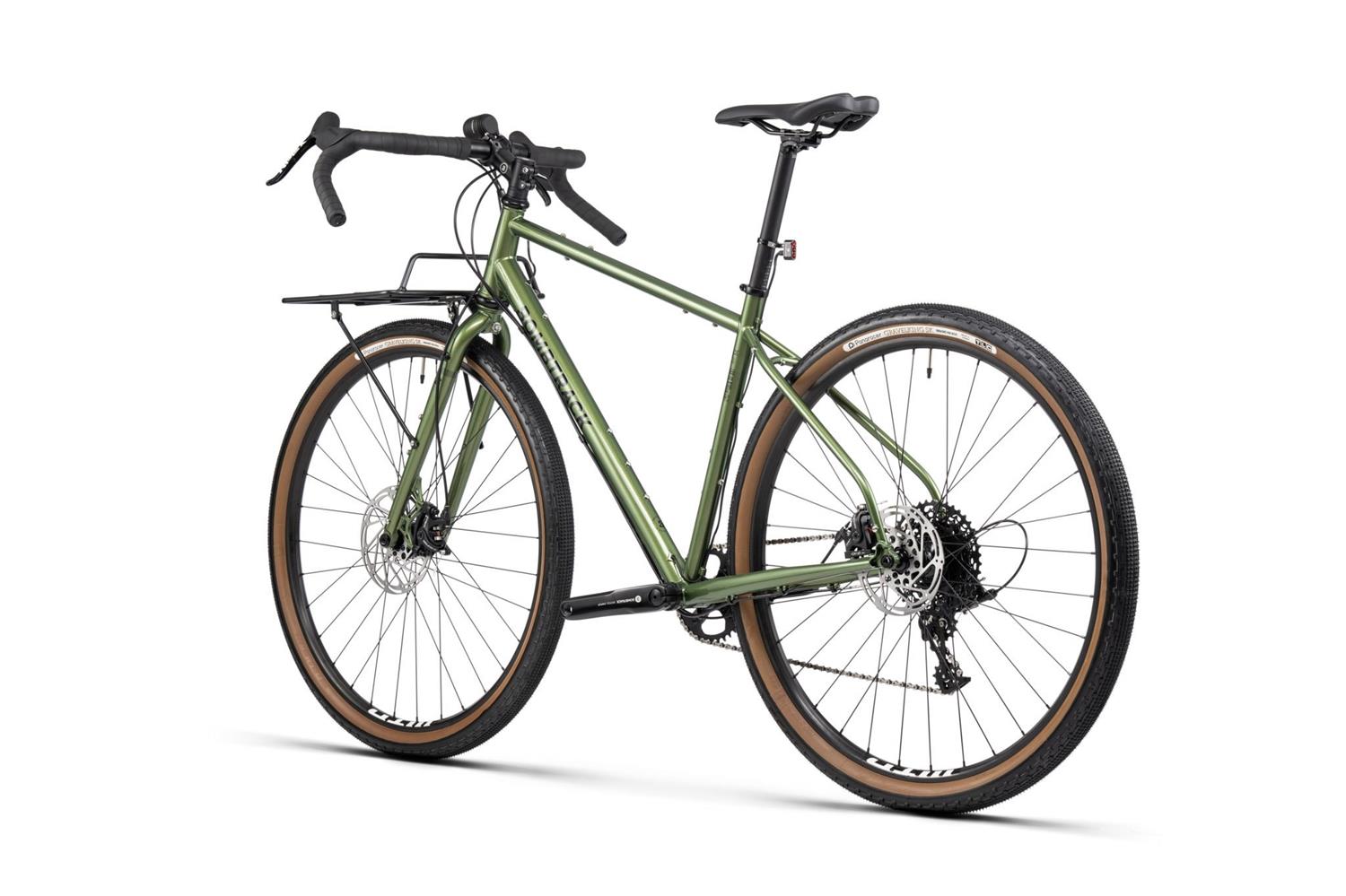

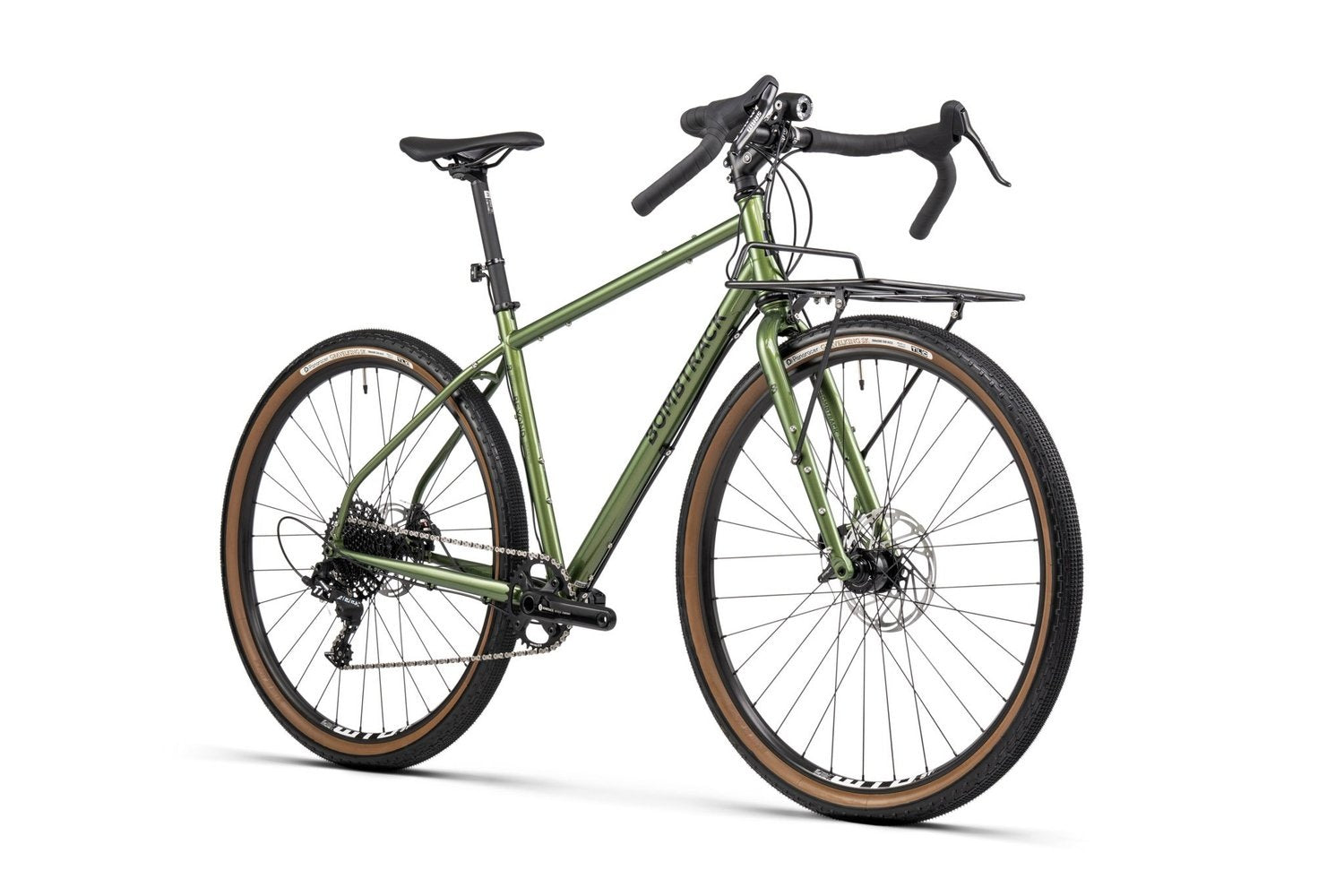

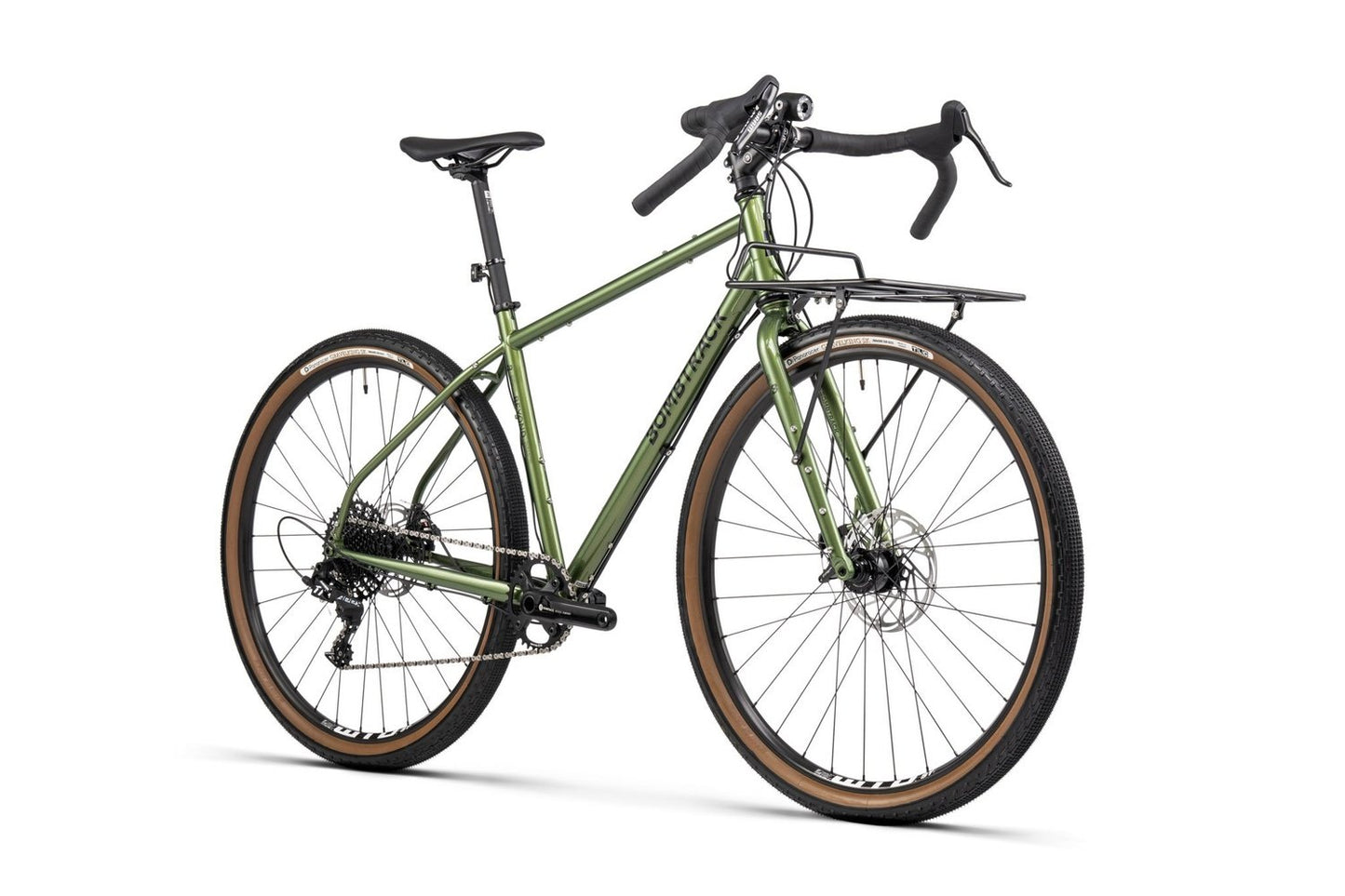

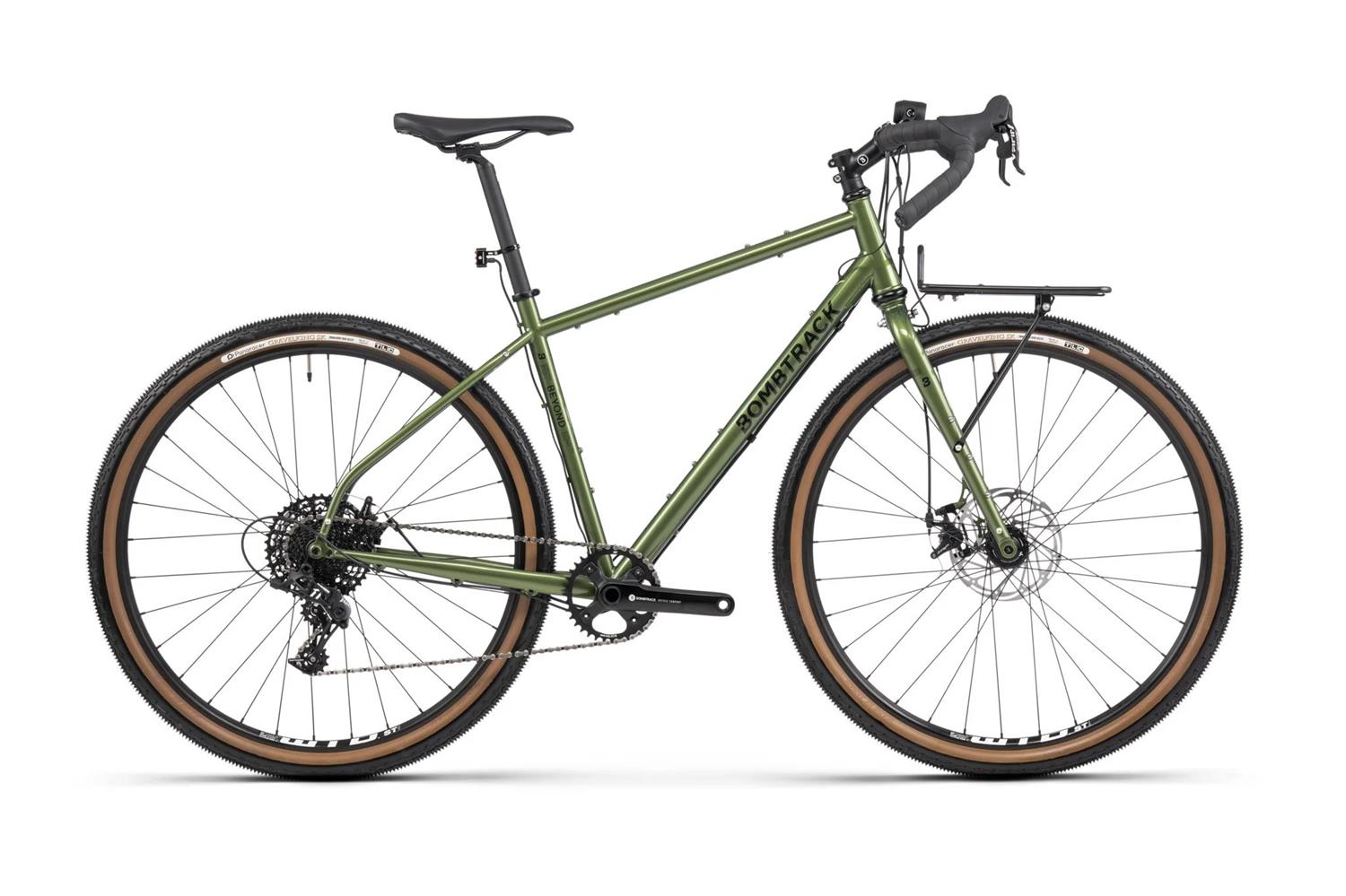

Beyond 2 is just like our Beyond 1 only brighter! We’ve fitted it with a Supernova lighting system running off a KT dynamo hub for a permanent lighting solution. We also fitted a front luggage rack so it’s as equally capable of collecting the pizzas on the way home, as it is at packing your sleeping kit for a sneaky night out under the stars.
The Sram Apex 1 x 11 mechanical transmission keeps things simple yet capable, and reliable stopping power comes from the simple to maintain TRP Spyre C brakes. 700 x 50C Panaracer Gravel King SK tyres open up a whole world of road and trail surfaces – the sky really is the limit with the Beyond 2.
"...our continent-crossing adventure tourer with a specification based on feedback from users in the field."
| Color 1 | Metallic green |
| Color 2 | - |

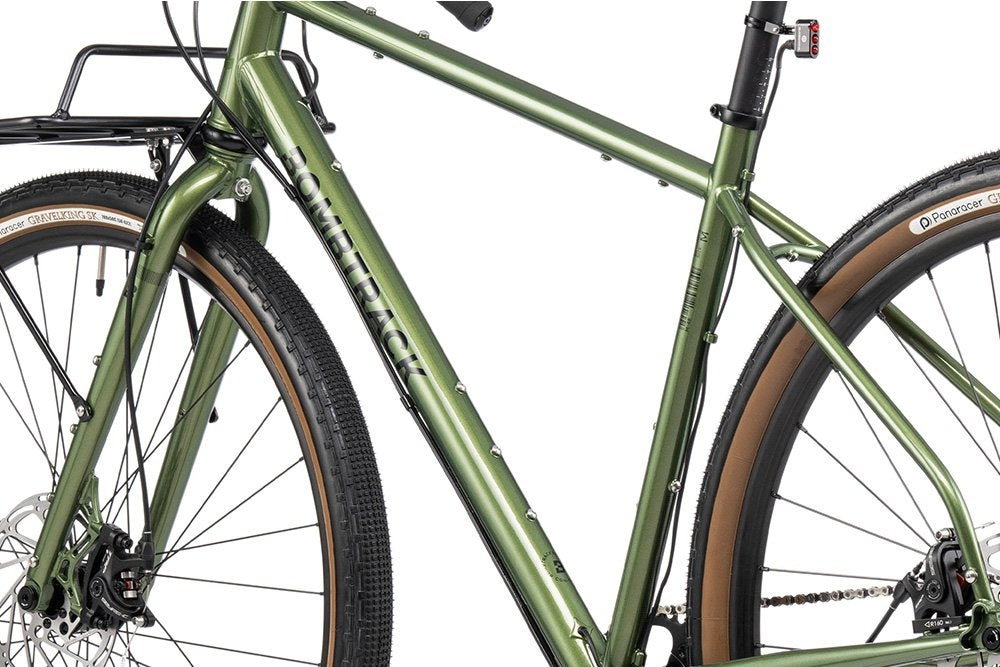

| Frame | 4130 double butted crmo, TA, rack / fender mounts, internal light cable routing, 73 mm BSA BB shell |
| Fork | 4130 crmo, double butted blades, TA, 1.1/2'' - 1.1/8'', fender / rack / triple cage mounts, internal hub dynamo cable routing |
| Handlebar | Bombtrack Beyond travel bar, 31.8 mm, 30° flare |
| Grips | Bombtrack Command bar tape |
| Stem | Bombtrack Wander forged aluminium stem, +17° |
| Headset | Sealed external aheadset, 1.1/2'' - 1.1/8'' |
| Levers | Sram Apex double tap mechanic |
| Shifter | Sram Apex double tap 1 x 11 |

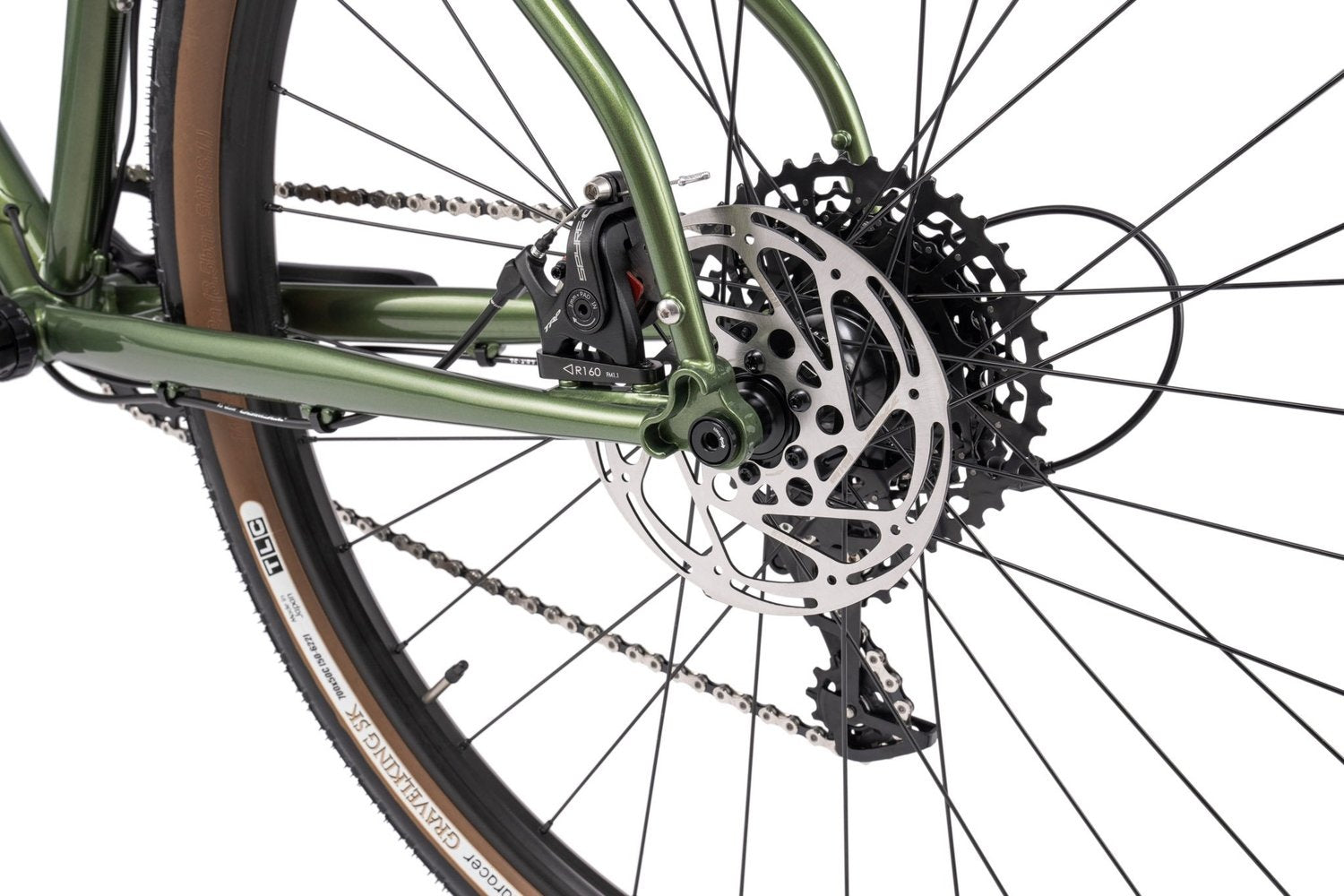

| Brakes | TRP Spyre C mechanic disc brakes |
| Rotor | TRP 180 mm front and 160 mm rear rotor |

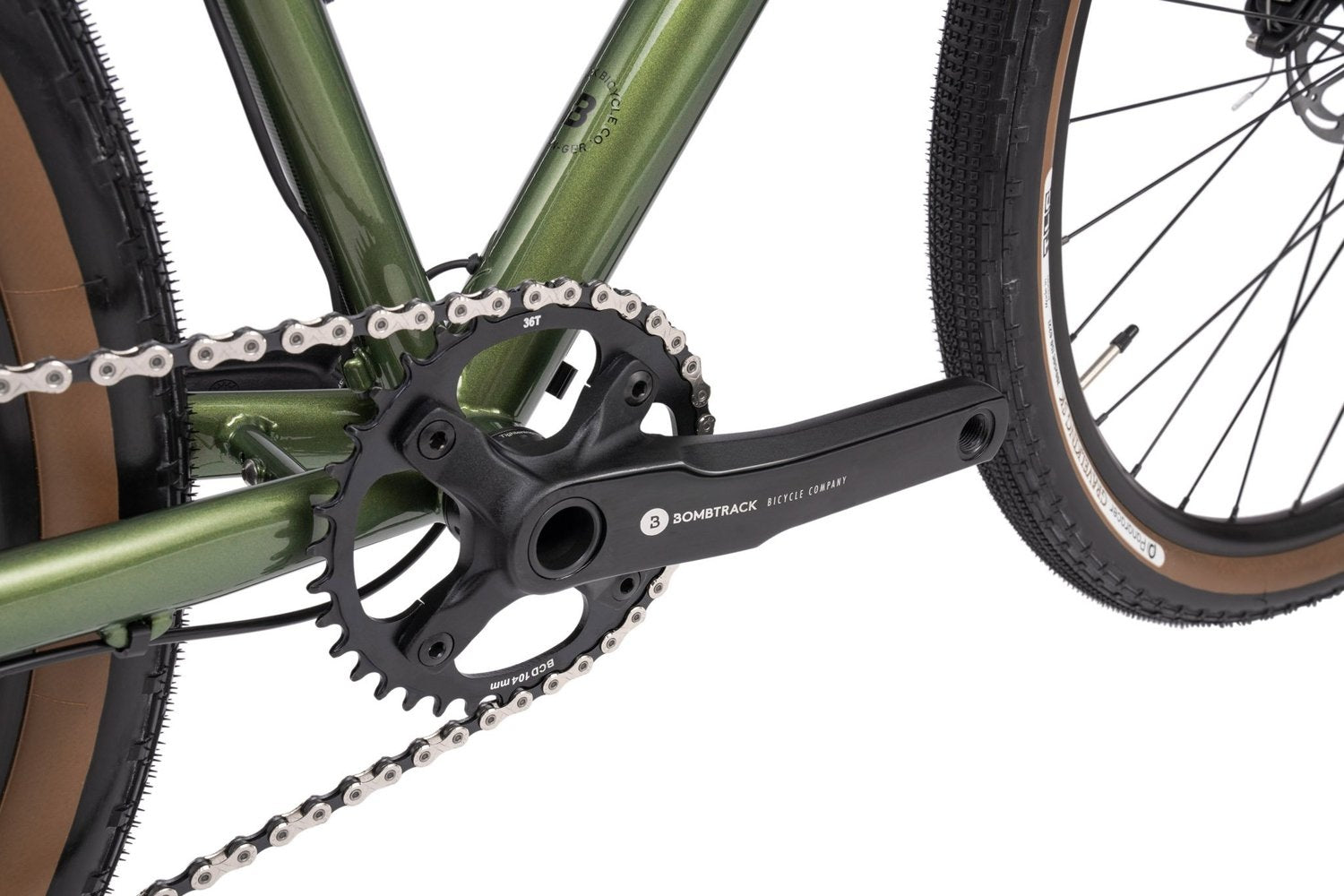

| Crankset | Bombtrack Ames forged aluminium crank, 24 mm spindle |
| BB | BSA sealed BB, external cups |
| Pedals | - |
| Chain | KMC X11 chain, 1/2'' x 11/128'', 114L |
| Chainring | Aluminium, narrow-wide, 36 T |
| Cassette | Sram PG-1130 11-speed, 11 - 42 T |
| Front derailleur | - |

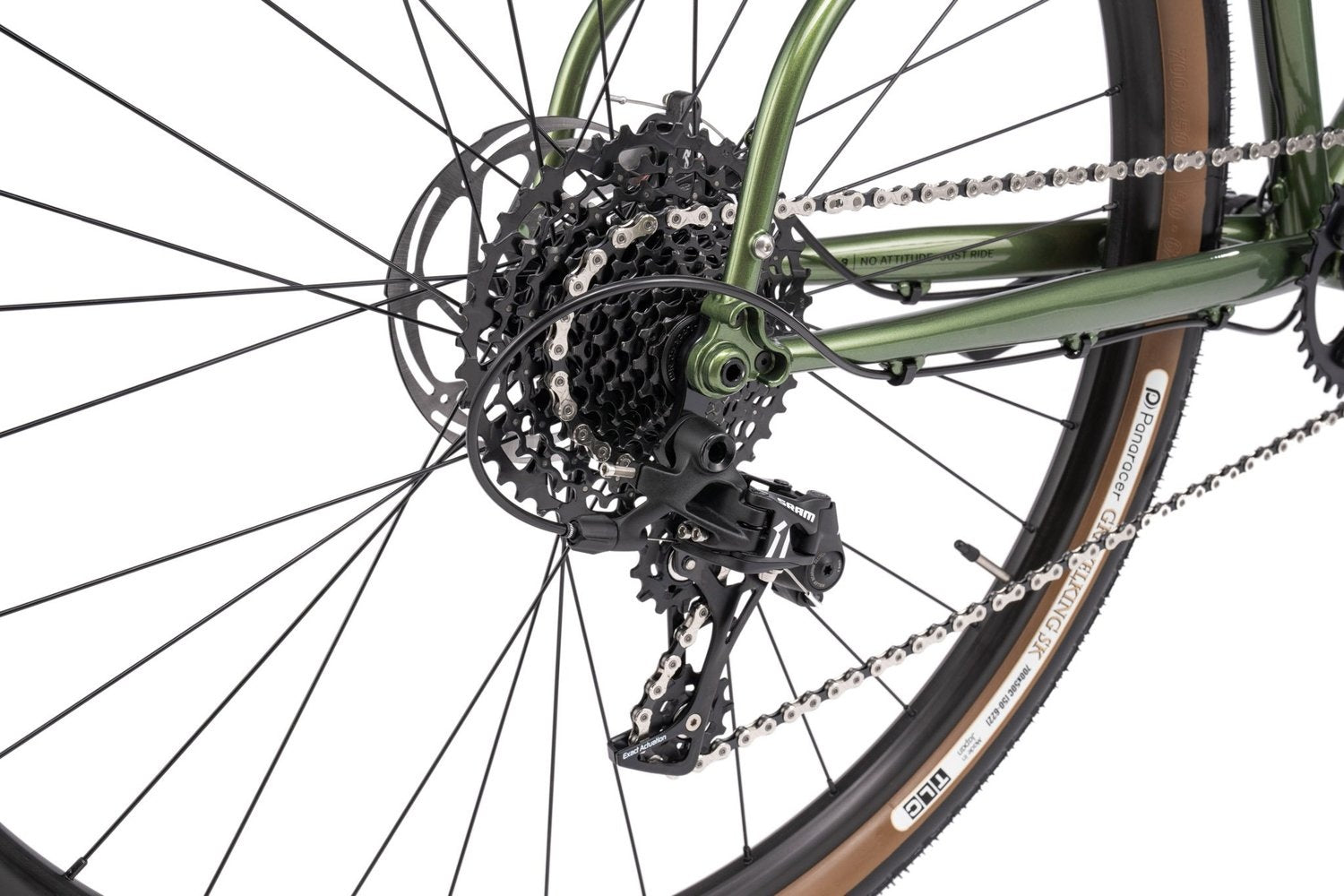

| Rear derailleur | Sram Apex 1, clutch, long cage |

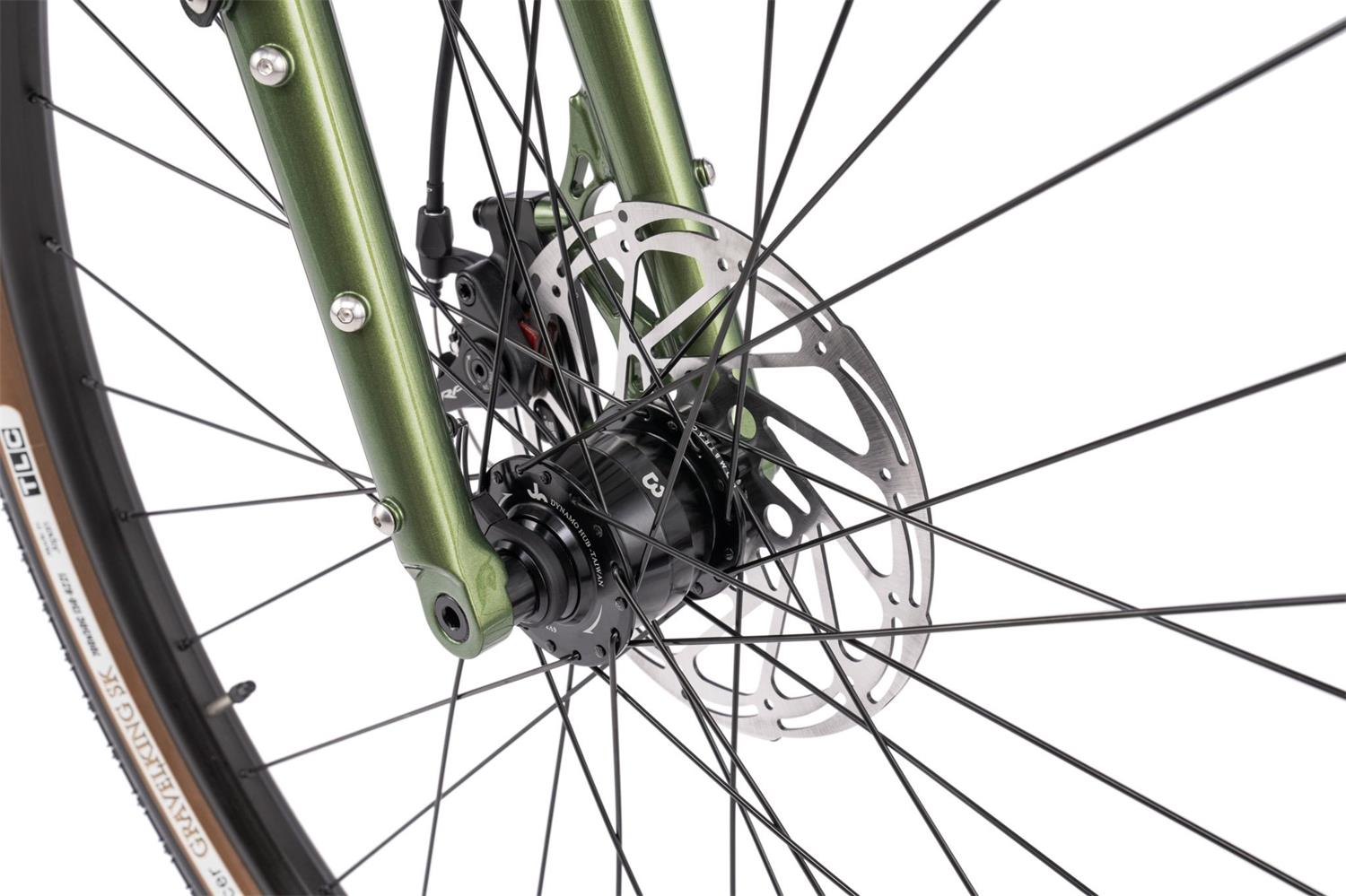

| Front hub | KT dynamo hub, 6-bolt disc |
| Rear hub | Bombtrack Arc sealed hub, 11-speed, 6-bolt disc |
| Through axle | 15 x 100 mm / 12 x 142 mm |
| Front rim | WTB ST i23 double wall, TCS 2.0, 32h |
| Rear rim | WTB ST i23 double wall, TCS 2.0, 32h |
| Saddle | Bombtrack Fuzz saddle |
| Seat post | Seido Beech 27.2 mm x 400 mm |
| Seat clamp | Bombtrack Origin 29.8 mm |
| Front tire | Panaracer Gravelking SK XS - S 27.5'' x 1.9'' / M - XL 29'' x 2.0'', tubeless ready |
| Rear tire | Panaracer Gravelking SK XS - S 27.5'' x 1.9'' / M - XL 29'' x 2.0'', tubeless ready |

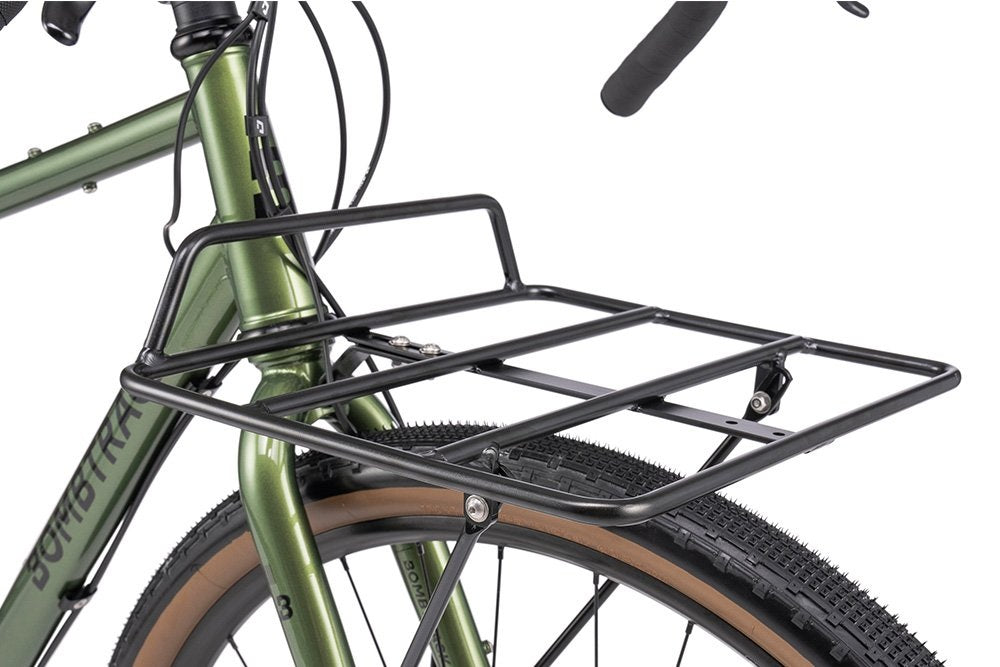

| Rack | Bombtrack Deck frontrack, aluminium |

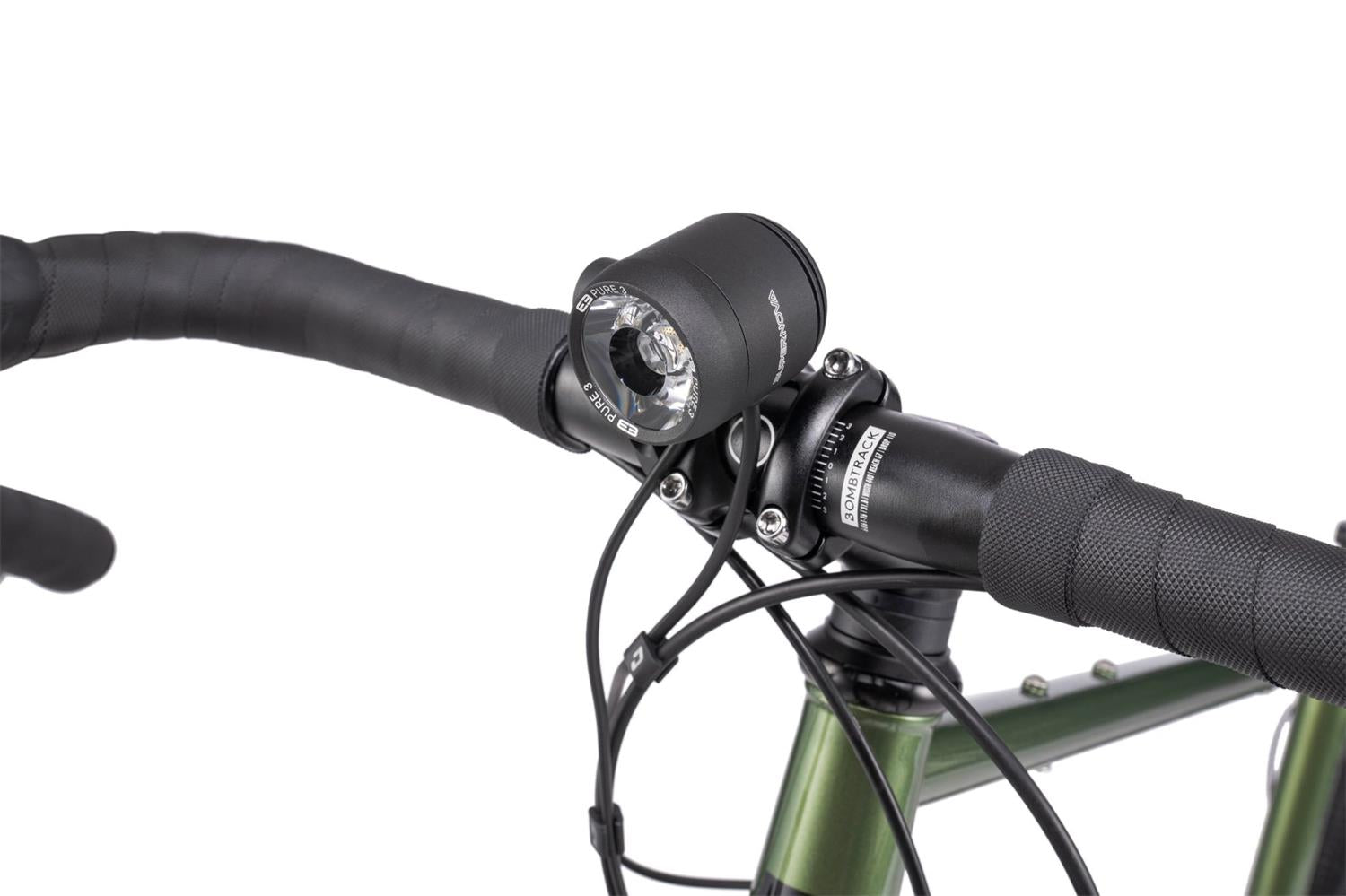

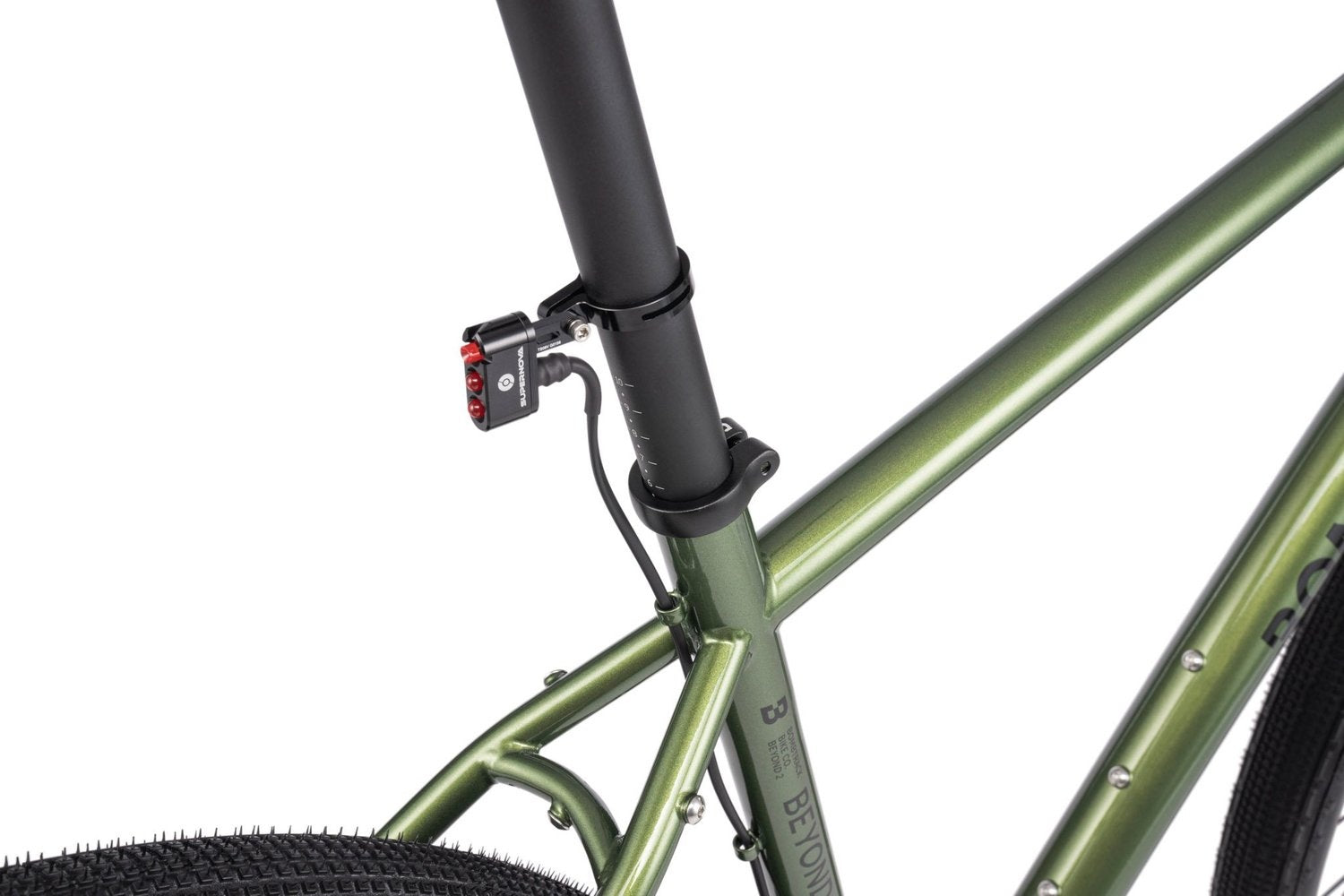

| Light | Supernova E3 Pure 3 front, E3 Tail Light 2 rear |
| Weight | 13.2 kg (size M) |
| Weight frameset | 2540 g frame (size M, incl. TA, bolts, seatclamp, hanger) / 1500 g fork (300 mm steerer, incl. TA) |
| Maximum rider weight | 140 kg incl. luggage |
| ASTM riding condition | 2 |
Final product may vary in appearance, finish and minor details.
