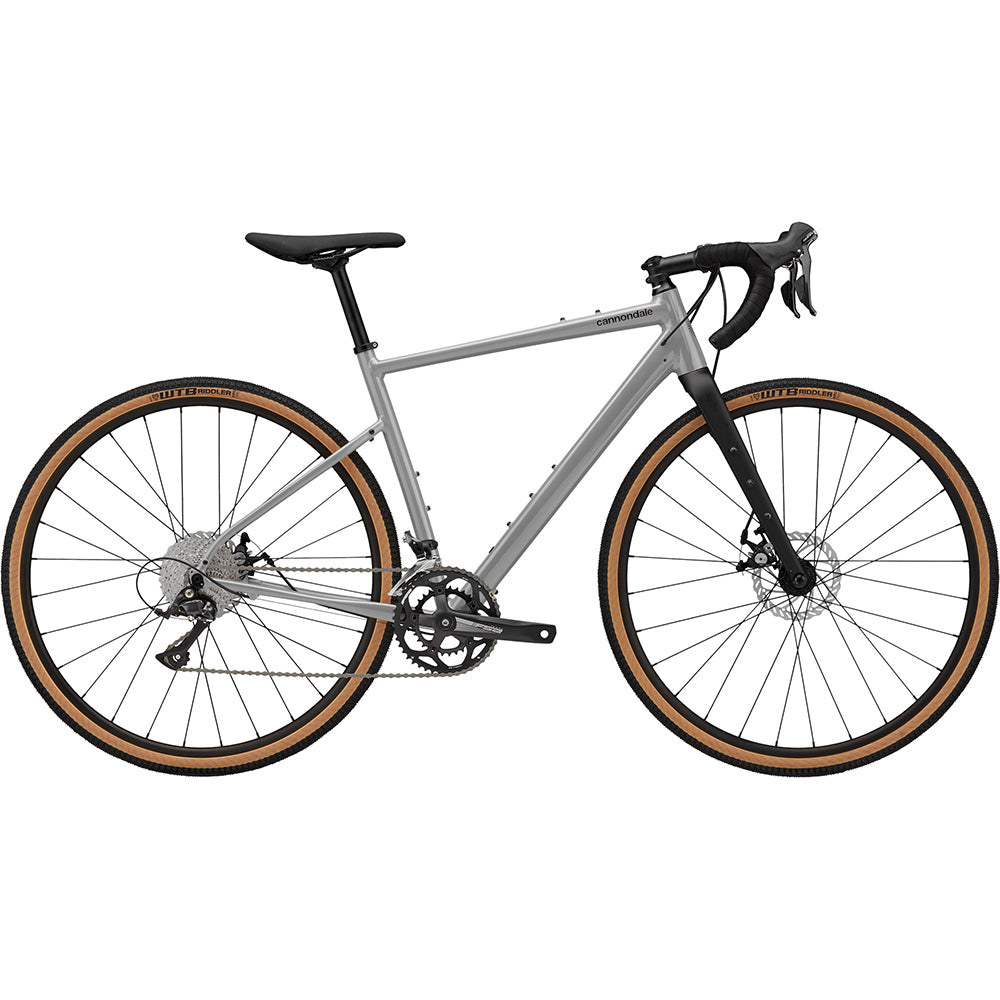

TOPSTONE ALLOY SPARES 2023+

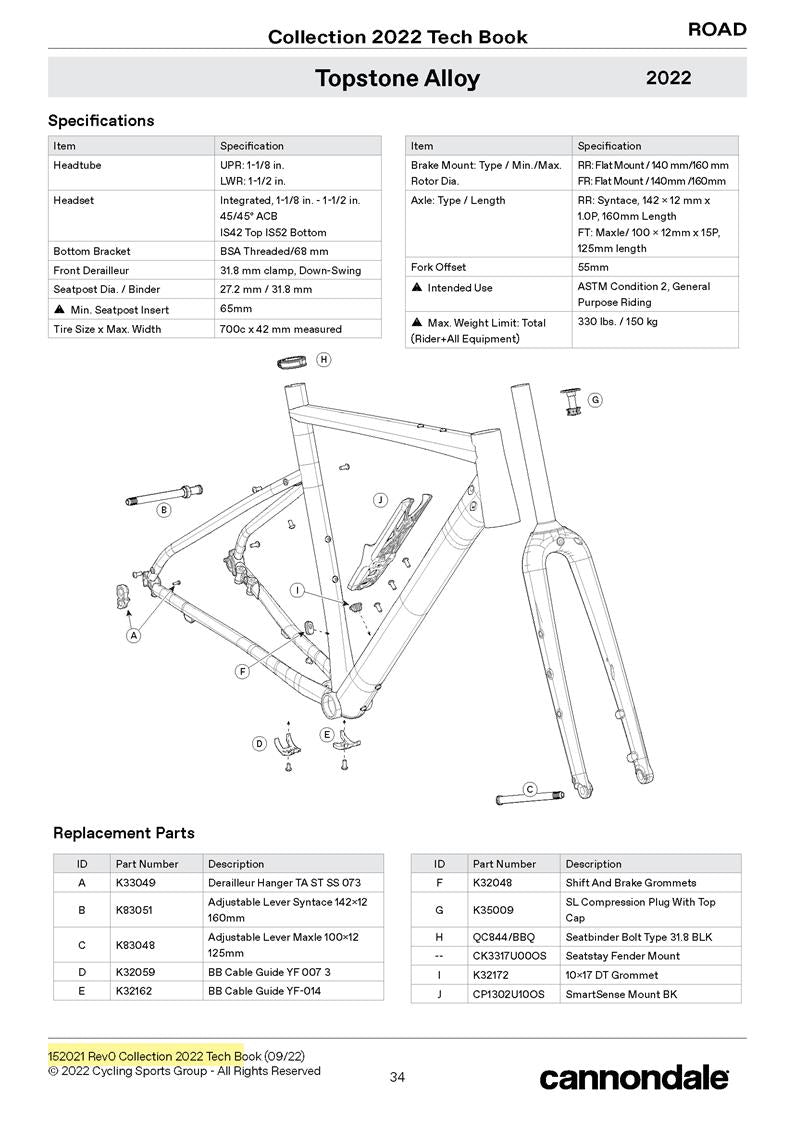

SPECIFICATIONS
Head Tube - Upper 1-1/8 in, LWR 1-1/2 in
Headset - Integrated, 1-1/8 in. - 1-1/2 in. 45/45º ACB IS42 Top IS52 Bottom
Bottom Bracket: Type / Width - BSA Threaded/68mm
Front Derailleur - 31.8 mm clamp, Down-Swing
Seat Post: Dia./Binder - 27.2mm/31.8mm
Minimum Seat Post Insert - 65 mm
Tyre Size x Maximum Width - 700x42mm (measured)
Brakes: Mount Type / Min / Max Rotor Diameter - RR: Flat Mount/140mm/160mm FT: Flat Mount/140mm/160mm

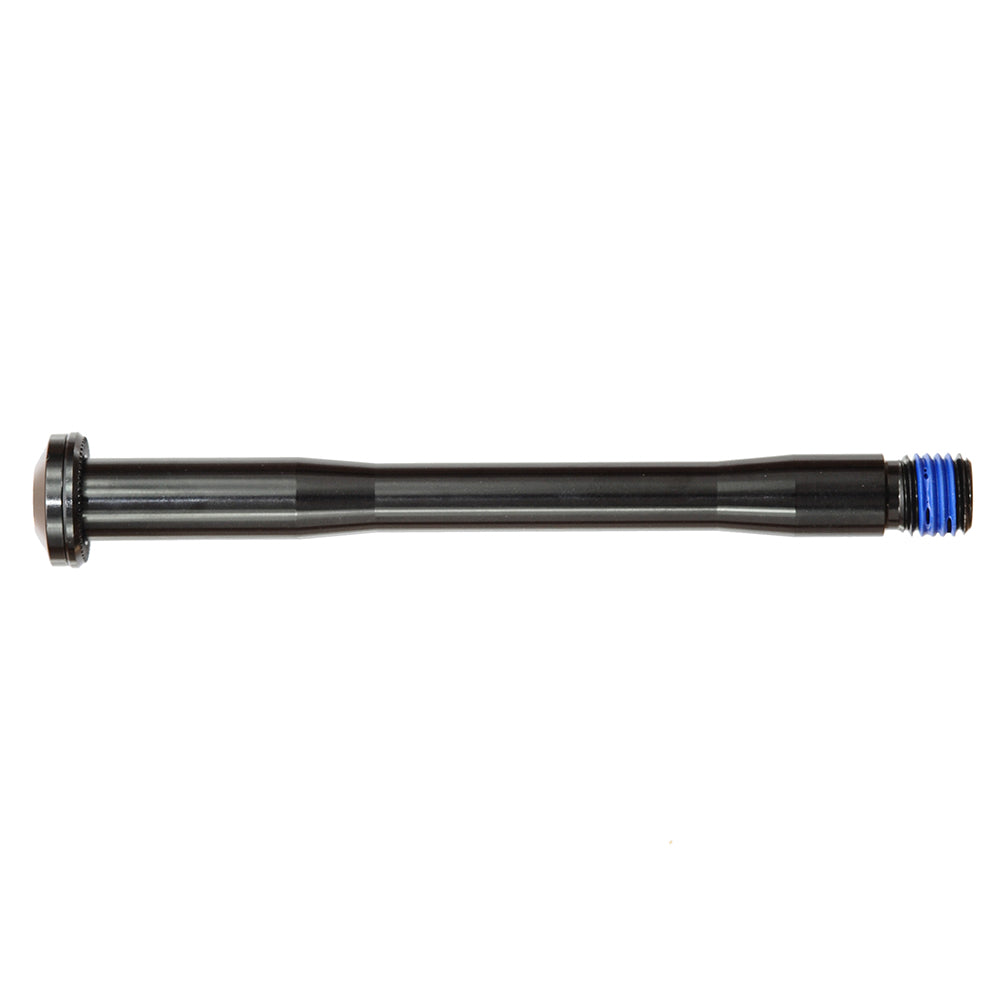

Axles: Type / Length - RR: Syntace, 142 x 12 mm x 1.0P, 160mm Length, FT: Maxle/ 100 x 12mm x 15P, 125mm length
Fork Offset - 55mm
Maximum Weight Limit: Total - 150kg
|
