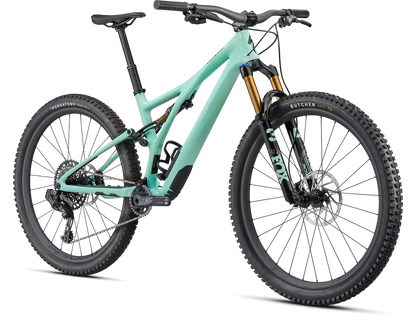

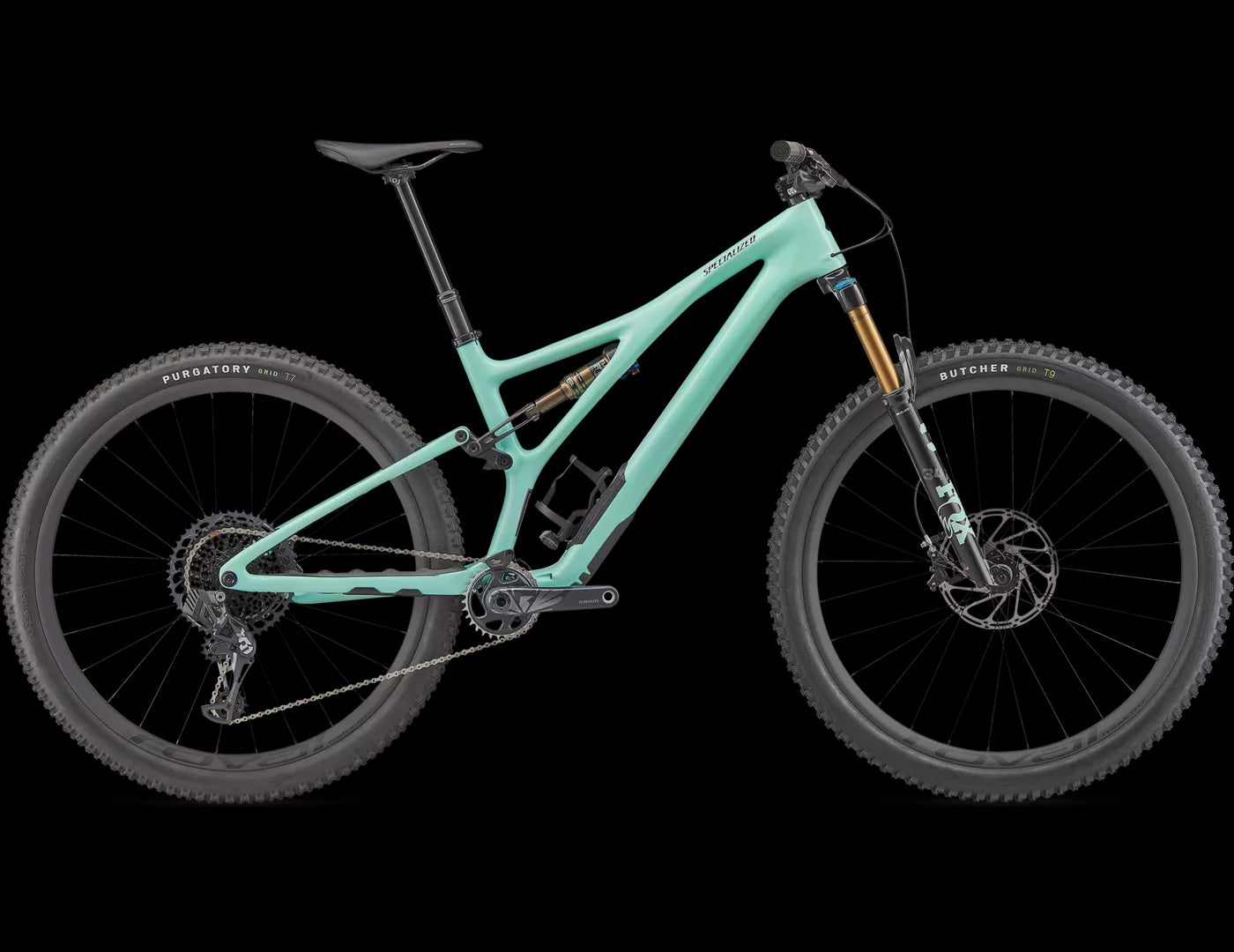

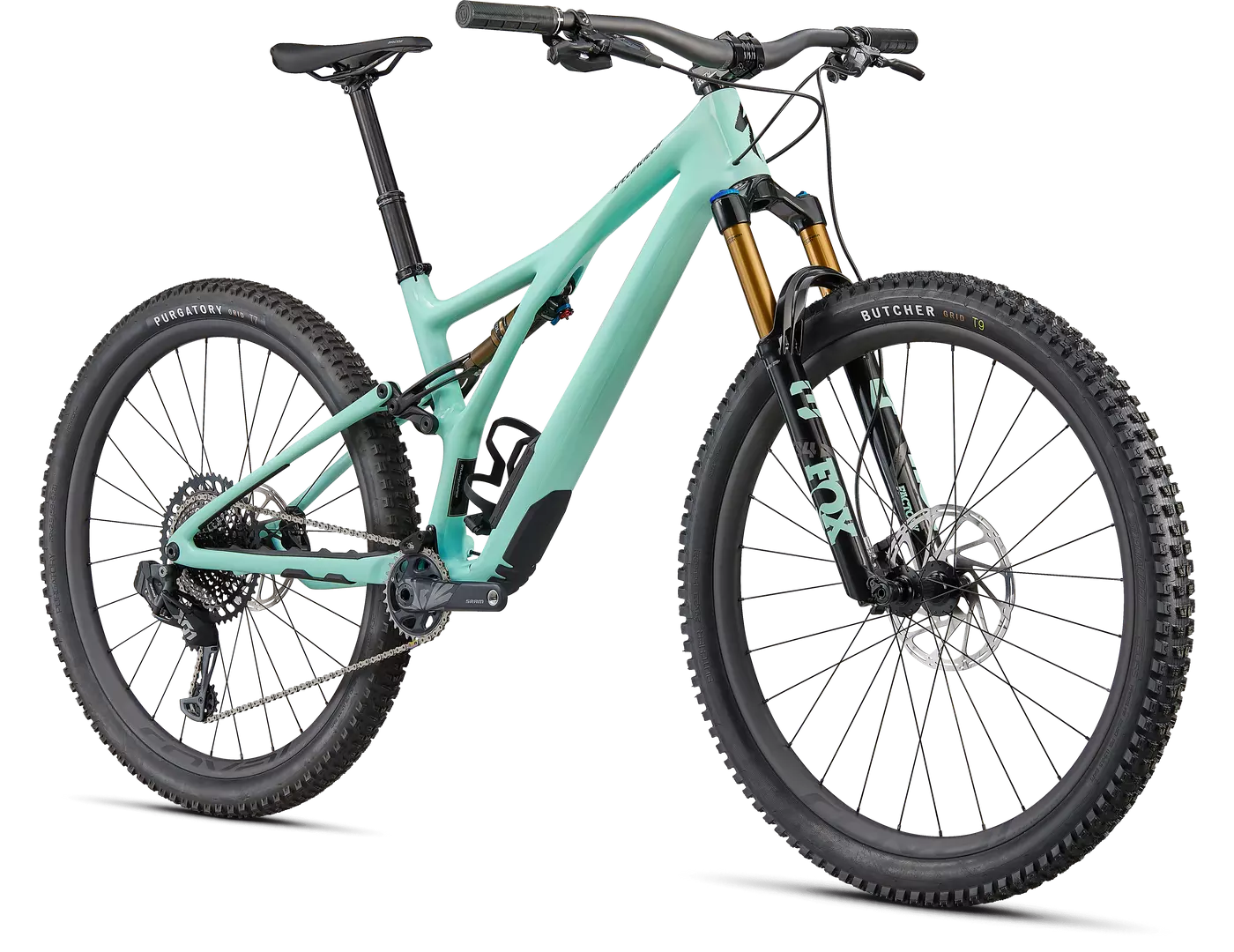

SPECIALIZED STUMP JUMPER PRO S5

SPECIALIZED STUMP JUMPER PRO S5

$8,999.00 NZD
$13,500.00 NZD $8,999.00 NZD
Sale Enquire Today
Shipping calculated at checkout.

Contact Us

07 571 0760

letsride@vanquishcycles.co.nz

1216 Cameron road, Tauranga, Gate Pa, NZ.

At a price thats hard to beat and with only a few left in New Zealand, give our Sales Manager a call today  075710760  letsride@vanquishcycles.co.nz

The Stumpjumper Pro is a top-tier, do-it-all, mind- terrain- and horizon-expansion tool. You get the same FACT 11m carbon frame as our S-Works Stumpjumper, with class-leading light weight and all-new suspension kinematics. You get a bike that devours quad-searing climbs with ease, and absolutely scorches the descents. You get the picture: This thing rips.

Top that off with SRAM's XO1 Eagle AXS 12-speed drivetrain and FOX Factory suspension and the “bang for the buck” factor is almost as rad as the bike itself.

  • THE TRAIL BENCHMARK—When we set out to design the all-new Stumpjumper, we pursued some hefty goals. It had to excel on any kind of trail, for every style of rider. To achieve that, we went after serious weight reduction without sacrificing durability, a stiff, responsive chassis that still rides light and lively, geometry that improves everyone’s riding, and the best suspension kinematics we know how to design. Turns out, you can have your cake and eat it too with the new Stumpjumper.
  • THE SWEETEST 130MM OF TRAVEL YOU’LL EVER RIDE—We massaged the kinematics of the Stumpjumper suspension to bring out the very best all-round performance possible in a 130mm package. Countless hours of suspension lab development and field testing created a refined mid-travel ripper that eats big terrain like a gravity fed beast, handles like a dream everywhere, and climbs like it has a motor.
  • PROGRESSIVE GEOMETRY—The S-Sizing geometry of the new Stumpjumper hits the progressive sweet spot. It’s long, low and slack, with a short offset fork and a steeper seat tube angle. These numbers combine to make your ride more stable, more carvealicious, more comfortable climbing, more better everywhere. With FlipChip adjustability you’re able to further fine-tune your fit, ensuring that your new Stumpjumper performs flawlessly on whatever terrain you choose.
  • RIDER-FIRST ENGINEERED™—Rider-First Engineered™ frames use a size-specific approach to ride characteristics that ensures benchmark handling and flawless performance, regardless of frame or rider size. Whether you’re a jump-happy grom riding an S1, or a DH-fiend giant in need of the lengthy S6, you’ll experience the same ride traits – rail-sharp cornering and balanced front and rear stiffness – at the lightest-possible weight, And by light, we mean real light: 2,250 grams (S-Works, S-3 size, with rear shock).
  • SWAT™—We introduced the SWAT™ door on the Stumpjumper in 2016, adding room IN your frame for those “oh sh**t” necessities like pumps and spare tubes, and immediately rendering jersey pockets redundant.
Specifications
FRAMESET
Seat Binder
Alloy, 38.6mm
Frame
FACT 11m carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, flip chip Head Tube/Bottom Bracket adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel
SUSPENSION
Fork
FOX FLOAT 34 Factory, GRIP2 damper, Kashima Coating, 15x110mm, 44mm offset, 140mm of travel
SUSPENSION
Rear Shock
FOX FLOAT DPS Factory, Rx Trail Tune, EVOL Air sleeve, Kashima Coat, 3-position adjustment w/ Open Mode Adjustment, 190x45mm
COCKPIT
SeatPost
Bike Yoke, Revive Max, 34.9 (S1:120mm, S2/S3:150mm, S4-S6: 185mm)
Saddle
Bridge, 155/143mm, Hollow Ti-rails
Stem
Deity, 35.0mm
Grips
Deity, Knuckleduster, Black
Handlebars
Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm
BRAKES
Rear Brake
SRAM G2 RSC, 4-piston caliper, hydraulic disc, 180mm
Front Brake
SRAM G2 RSC, 4-piston caliper, hydraulic disc, 200mm
DRIVETRAIN
Bottom Bracket
SRAM DUB, BSA 73mm, Threaded
Shift Levers
SRAM Eagle AXS Rocker Paddle
Rear Derailleur
SRAM X01 Eagle AXS
Crankset
SRAM X1 Carbon, DUB, S1:165mm, S2-S5: 170mm, S6: 175mm
Cassette
SRAM XG-1295 Eagle, 10-52t
Chain
SRAX X01 Eagle, 12-speed
Chainrings
Alloy, 30T
WHEELS
Front Tire
Butcher, GRID casing, GRIPTON® T9 compound, 29x2.3"
Spokes
DT Competition Race
Rear Hub
DT Swiss 350, Star Ratchet, 36t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
Front Hub
DT Swiss 350, sealed cartridge bearings, 15x110mm spacing, 28h
Rear Tire
Purgatory, GRID casing, GRIPTON® T7 compound, 29x2.3"
Rims
Roval Traverse Carbon 29, hookless carbon, 30mm inner width, hand-built, 2Bliss Ready
Inner Tubes
Standard, Presta Valve
Geometry
S1 S2 S3 S4 S5 S6
Crank Length 165 170 170 170 170 175
Handlebar Width 780 780 780 780 780 780
Stem Length 35 35 50 50 50 50
Saddle Width 155 155 143 143 143 143
Seatpost Length 125 160 160 185 185 185
Stack (Low BB) 614 613 622 632 641 650
Stack (High BB) 610 609 618 627 636 646
Reach (Low BB) 410 430 450 475 500 530
Reach (High BB) 415 435 455 480 505 535
Headtube Length 95 100 110 120 130 140
Headtube Angle (Low BB) 65 65 65 65 65 65
Headtube Angle (High BB) 65.5 65.5 65.5 65.5 65.5 65.5
BB Height (Low BB) 328 333 333 333 333 333
BB Height (High BB) 335 340 340 340 340 340
BB Drop (Low BB) 47 42 42 42 42 42
BB Drop (High BB) 40 35 35 35 35 35
Trail (Low BB) 126 126 126 126 126 126
Trail (High BB) 123 123 123 123 123 123
Fork Length (full) 550 550 550 550 550 550
Fork Rake/Offset 44 44 44 44 44 44
Front Center 724 746 770 800 829 863
Chainstay Length 432 432 432 432 442 442
Wheelbase 1152 1175 1200 1228 1268 1302
Top-tube Length (horizontal) 563 583 605 632 660 692
Bike Standover Height 730 734 744 749 757 757
Seat Tube Length 385 385 405 425 445 465
Seat Tube Angle (Low BB) 76 76 76 76 76 76
Seat Tube Angle (High BB) 76.5 76.5 76.5 76.5 76.5 76.5
Max Seatpost Insertion 220 220 240 260 280 300
Min Seatpost Insertion 80 80 80 80 80 80
