MERIDA

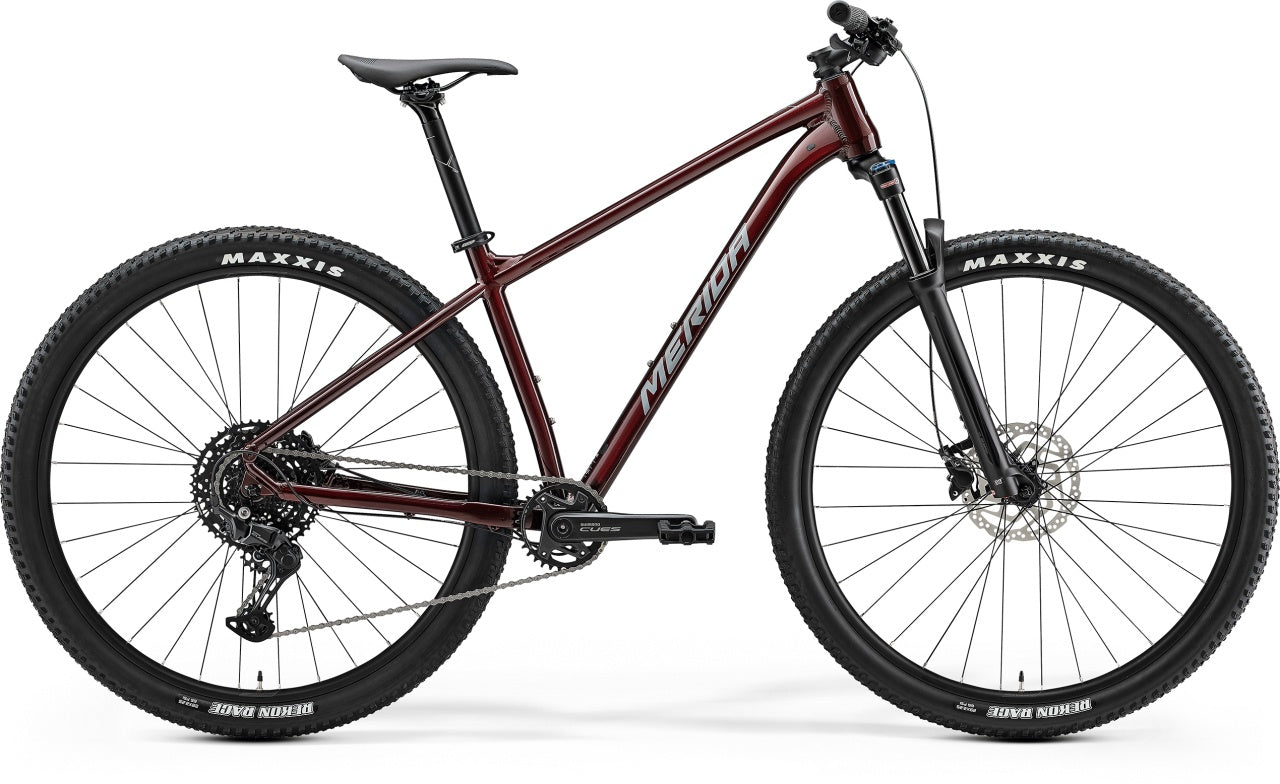

MERIDA BIG NINE 200 IV1 GLITTER CHERRY
MERIDA BIG NINE 200 IV1 GLITTER CHERRY
Couldn't load pickup availability
Give our Sales Manager a call to discuss options 075710760
Ride now, pay later with AfterPay and QCard options
Single chainring aluminium 29er hardtail, featuring a 100 mm air suspension fork, a 10-speed Shimano drivetrain and powerful hydraulic disc brakes. The BIG.NINE 200 is ready for your next off-road adventure.
29er wheels offer fantastic 'roll over' ability and keep their speed well. Perfect for your next mountain bike outing. We pair our double butted aluminium frame with an air suspension fork and a reliable single chainring 10-speed Shimano drivetrain for the perfect combination of comfort and control. The slightly more upright riding position in comparison to our more racy models puts less strain on the lower back and also improves the visibility of what lies ahead.
Mountain biking is one of the most varied cycling disciplines and probably the most demanding when it comes to equipment. While full suspension bikes offer amazing riding characteristics, the classic hardtail remains one of the purest tools for the job. Our 29er wheel equipped BIG.NINE range comes in carbon and aluminium and features multiple geometry options. The updated CF carbon and LITE aluminium framed BIG.NINE offer truly modern geometry with increased standover clearance and handling stability to better deal with the tough race tracks of today, with downcountry ready TR options that boost fork travel and add in aggressive tyres and dropper posts. The more relaxed geometry of the BIG.NINE TFS and SPEED offers a more comfortable, upright riding position. Our classic hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we could gain in over half a century of bike production and manufacturing. The BIG.NINE range represents the symbiosis between modern frame technology, attention to detail and craftsmanship 'Made in Taiwan' symbolises.
Features:
- Double butted aluminium frame with 29er wheels
- Less aggressive and more upright geometry for maximum control and comfort
- SR Suntour 100 mm travel air suspension fork with lockout
- Shimano CUES 10-speed drivetrain
- Hydraulic disc brakes
- Internal cable routing
| FRAME | BIG.NINE TFS IV; MAT aluminum; 29 WHS; 135x9 AST; BSA BBR; Smooth welding |
| SHOCK | |
| FORK | Suntour XCR32-ATB LOR; Air; 100 STR; Lockout; 44mm fork offset |
| BRAKE-F | Shimano MT200; 2 piston |
| BRAKE-R | Shimano MT200; 2 piston |
| ROTOR-F | Shimano RT10; 180mm |
| ROTOR-R | Shimano RT10; 160mm |
| CHAIN | KMC xGlide |
| CHAINGUARD | |
| CRANKSET | Shimano CUES U6000; 32 ATC |
| CRANK LENGTH | 170 mm-S, 175 mm-M up |
| BOTTOM BRACKET | Shimano MT500 |
| DERAILLEUR-FRONT | |
| DERAILLEUR-REAR | Shimano CUES U6000; GS |
| CASSETTE | Shimano LG300; 11-48 ATC; 10 GER |
| GRIPS | MERIDA COMP EC |
| HANDLEBAR | MERIDA EXPERT CC; MAT aluminium; 720 WHB; 10 RHB |
| STEM | MERIDA COMP CC; MAT aluminium; 31.8 DSH; 7 ASD |
| STEM SIZE | S:70 mm, M:80 mm, L:90 mm, XL:100 mm, XXL:110 mm |
| HEADSET | MERIDA M2345 |
| HUB-F | Shimano QC300; 100x9 WHF; 32 SPH; Centerlock |
| HUB-R | Shimano QC300-HM; 135x9 WHR; 32 SPH; Centerlock |
| AXLE-F | |
| AXLE-R | |
| RIM | MERIDA COMP CC II; 25 IWR; MAT aluminium; tubeless ready |
| SADDLE | MERIDA COMP SL; 25% recycled material; V-mount; incl. MERIDA minitool |
| SEAT CLAMP | MERIDA COMP QR |
| SEATPOST | MERIDA COMP CC; MAT aluminium; 30.9 DSP; 0 SSB |
| SHIFTER-FRONT | |
| SHIFTER-REAR | Shimano CUES U6000 |
| SPOKES | Black stainless |
| TIRE-F | Maxxis Rekon Race; 29x2.25"; wire |
| TIRE-R | Maxxis Rekon Race; 29x2.25"; wire |
