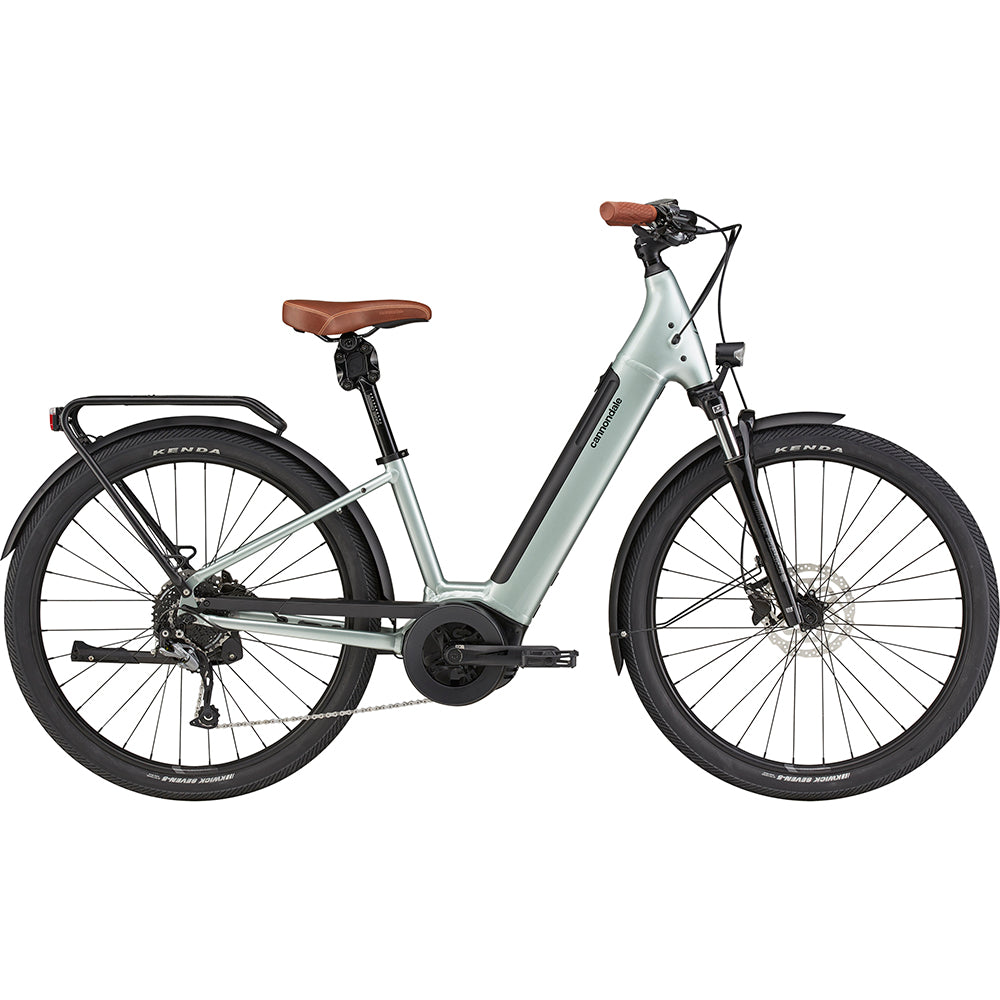

CANNONDALE ADVENTURE NEO 2019 - 2022 SPARES

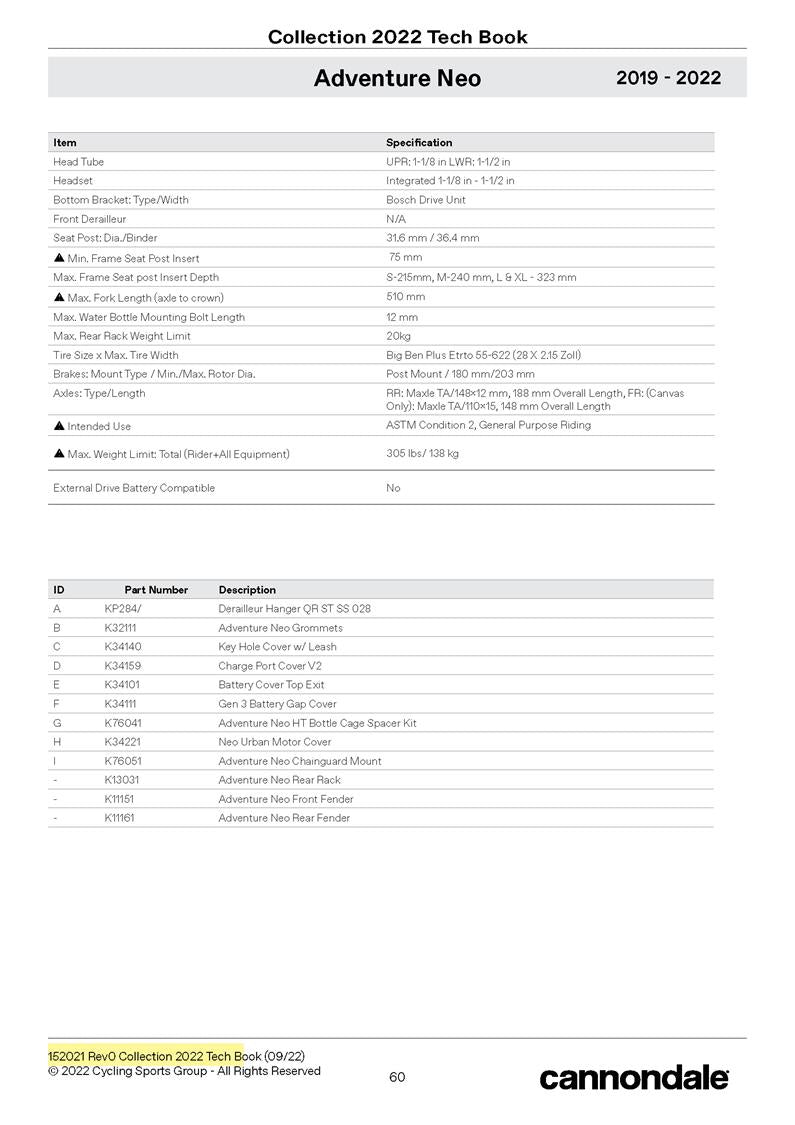

SPECIFICATIONS
Head Tube - Upper 1-1/8 in, LWR 1-1/2 in
Headset - Integrated 1-1/8 in - 1-1/2 in
Bottom Bracket: Type / Width - Bosch Drive Unit
Front Derailleur - N/A
Seat Post: Dia./Binder - 31.6mm/36.4mm
Minimum Seat Post Insert - 75 mm
Maximum Frame Seat post Insert Depth - S-215mm, M-240 mm, L & XL - 323 mm
Tyre Size x Maximum Width - Big Ben Plus ETRTO 55-622 (28 X 2.15 Zoll)
Maximum Fork Length - 510mm
Maximum Water Bottle Mounting Bolt Length - 12mm

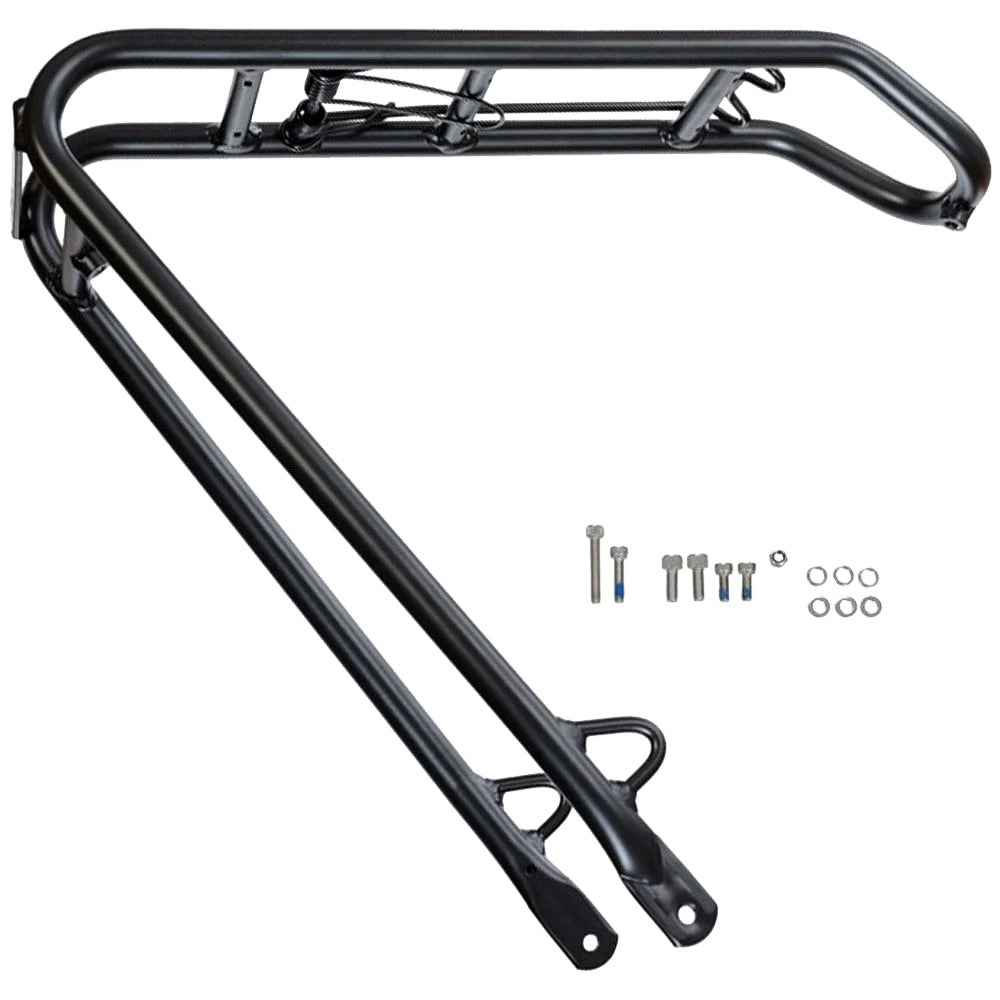

Maximum Rear Rack Weight Limit - 20kg
Brakes: Mount Type / Min / Max Rotor Diameter - Post Mount / 180 mm/203 mm
Axles: Type / Length - RR: Maxle TA/148x12 mm, 188 mm Overall Length
Maximum Weight Limit: Total - 138kg
External Battery Compatible - No
|
