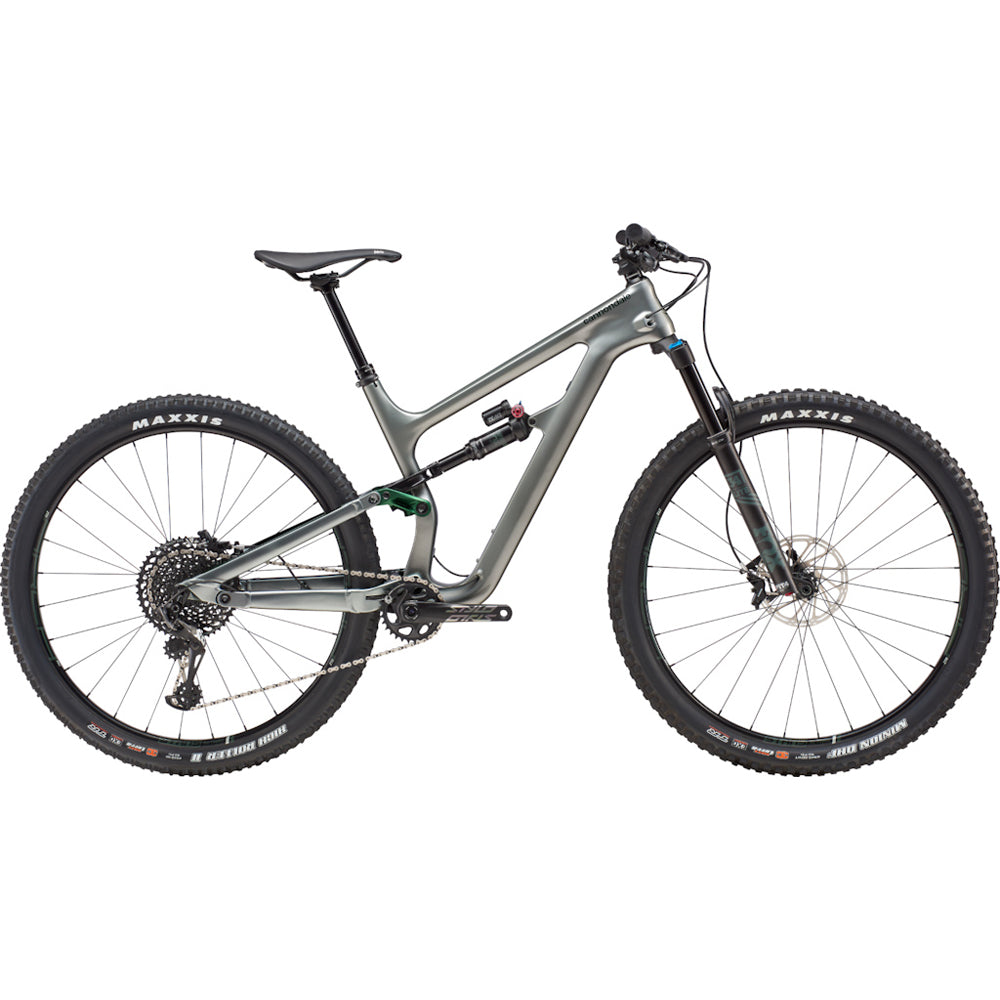

Habit 29 Spares - 2019 -2022

Habit Spares - 2019 - 2022

• Wheel Size - XS: 27.5 in, S-XL: 29 in
• Rear Travel - XS: 116 mm, S-XL: 130 mm
• Head Tube - UPR: 1 -1/8 in, LWR: 1-1/2 in”
• Headset - Integrated, 1-1/8 in - 1-1/2 in
• Bottom Bracket: Type / Width - CRB: PF30 / 83 mm, ALLY: BSA / 83 mm
• Front Derailleur - N/A
• Seat Post: Dia./Binder - 31.6mm / 34.9mm
• Min. Seat Post Insert - 100 mm
• Tire Size x Max. Width - XS: 27.5 x 2.5", S-XL: 29 x 2.5 "
• Max. Fork Length - 551mm
• Rear Shock: Eye-to-Eye / Stroke / Bushing Width - XS: 190 mm / 45 mm, S-XL: 210 mm / 50 mm, FT: 20 x 8 mm, RR: Bare
• Sag - 25%, 12 mm
• Chain Guide - ISCG05
• Rear Brake Mount / Type - Post Mount 180mm
• Axles: Type/Length - Maxle TA / 148 x 12 mm, 180 mm length
• Ai Offset - Rear Wheel: 3 mm Offset to NDS, SRAM Chainring: +6 mm Offset, Hollowgram SpideRing: Ai Offset
• Max. Weight Limit: Total - 138kg
