PRV

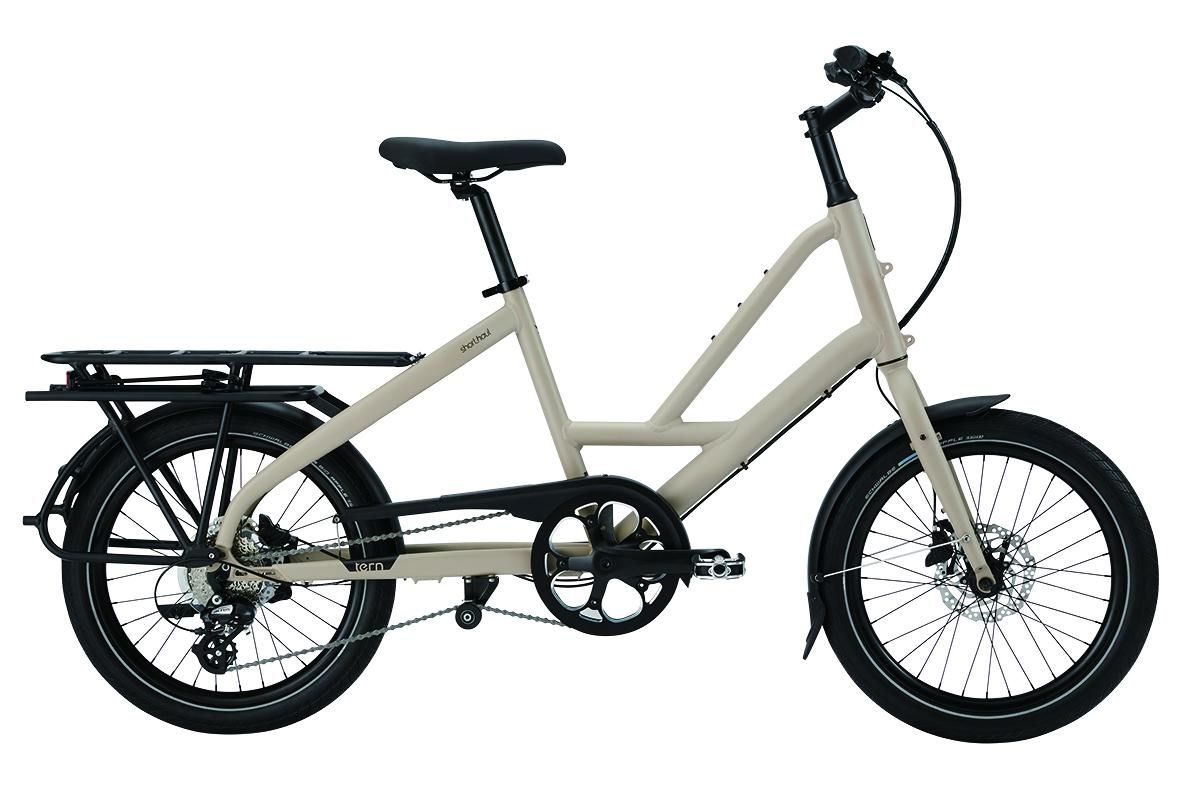

Tern Short Haul D8

Tern Short Haul D8

Regular price $1,579.90 NZD
Regular price Sale price $1,579.90 NZD
Sale Enquire Today
Shipping calculated at checkout.

SIMPLY PRACTICAL



  • Compact cargo bike that carries up to 50 kg on the rear rack, plus an additional 20 kg with optional front rack

  • Create your ideal setup with different accessory options to carry your kid, your stuff, or even your dog

  • Proven safe and reliable: frame and fork are EFBE-tested up to the 140 kg Maximum Gross Vehicle Weight

  • Fits riders of different heights from 147 - 190 cm, weighing up to 120 kg (264 lb)

  • Low standover height (49 cm) makes (dis)mounting and waiting at stops easier

  • 1x8-speed Shimano Altus derailleur with trigger shifter

  • Hydraulic disc brakes for great stopping power, even when carrying heavy loads


GENERAL INFO









































SPEEDS 1 x 8
WEIGHT 16.1 kg
GEAR INCHES 2.45 - 7.57 m
FRAME SIZES One size
DISTANCE (SEATPOST TO HANDLEBAR) 60 - 64 cm
DISTANCE (SADDLE TO PEDAL) 62 - 110 cm
SUGGESTED RIDER HEIGHT 147 - 190 cm
MAX GROSS VEHICLE WEIGHT 140 kg
MAX RIDER WEIGHT 120 kg

FRAME













FRAME Tern Short Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 140 kg
FORK Steel, EFBE approved: 140 kg

COCKPIT

































STEM Forged, 31.8
HEADSET TH, cartridge bearings
HANDLEBAR Low riser, 31.8, 6061-AL
GRIPS/BAR TAPE Velo ergonomic, lock-on
SADDLE Velo Comfort
SEATPOST 31.6 mm, 6061-AL, micro-adjust clamp
SEATPOST CLAMP Tern Collar

BRAKES





















FRONT BRAKE Hydraulic disc
REAR BRAKE Hydraulic disc
BRAKE LEVERS Hydraulic disc
BRAKE CABLE & HOUSING Hydraulic disc

WHEELS

























FRONT HUB Disc, aluminum
REAR HUB 8 spd, disc, aluminum
SPOKES AND NIPPLES Stainless steel
RIMS Doublewall, for disc
TIRES Schwalbe Big Apple, 55-406, puncture protection, Reflex

TRANSMISSION





































SHIFTER(S) 1 x 8 spd, trigger
REAR DERAILLEUR Shimano Altus
CRANKSET Forged 6061-AL crankarm
CASSETTE/FREEWHEEL 11-34T, 8 spd
BOTTOM BRACKET FSA, Cartridge, sealed bearings
CHAIN KMC, 8 spd
PEDALS Urban with non-slip surface
SHIFTER CABLE & HOUSING SP

BELLS & WHISTLES





























BELL Aluminum
CHAINGUARD SKS Chainblade
KICKSTAND Pletscher design, rear mount
LUGGAGE SOCKET Combo Mount
FENDERS SplashGuard, stainless hardware
RACK(S) Atlas Q Rack, 6 point mounting, Vertical Parking, 50 kg capacity




*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
